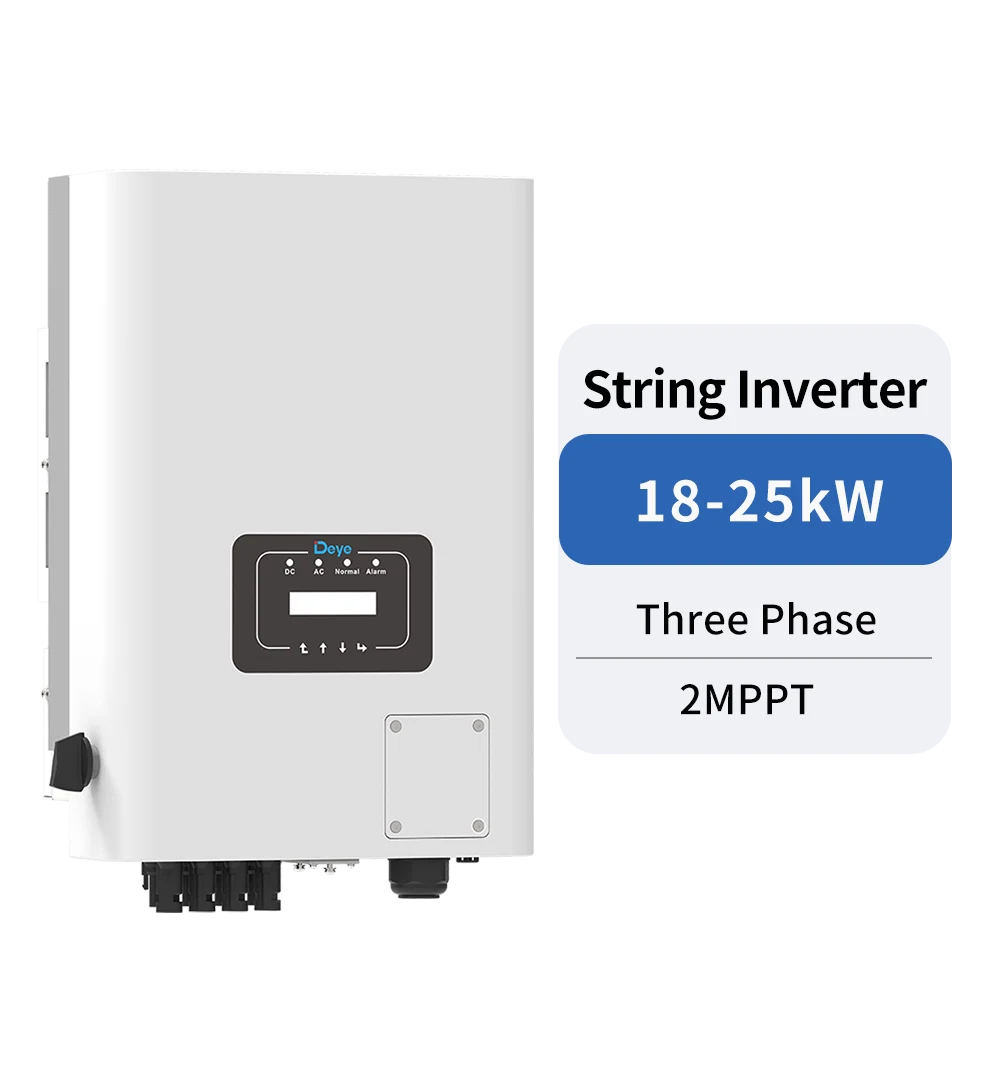

Deye SUN-18/20/22/23/25K-G05 · عاكس سلسلة

ميزات المنتج الرسمية

2 MPP tracker, Max. efficiency up to 98.6%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)

المواصفات الفنية الرسمية

المنتجات مرتبة حسب السلسلة الرسمية. تختلف القدرات والإصدارات الإقليمية والواجهات. الجداول الإنجليزية الأصلية تحفظ أعمدة الطرازات والخلايا المدمجة. أكد الطراز والشهادات والتوفر والشحن والمهلة قبل الشراء. الأسعار غير المعروضة حسب الطلب.

Deye SUN-18/20/22/23/25K-G05 — المواصفات الفنية الرسمية
Model	SUN-18K-G05	SUN-20K-G05	SUN-22K-G05	SUN-23K-G05	SUN-25K-G05
PV String Input Date
Max. PV Input Power(kW)	23.4	26	28.6	29.9	32.5
Max. PV Input Voltage(V)	1100
Start-up Voltage(V)	250
MPPT voltage range(V)	200-1000
Rated PV Input voltage(V)	600
Max. Input Short Circuit Current (A)	39+39
Max. Operating PV Input Current(A)	26+26
No. of MPP Trackers/No. of Strings per MPP Tracker	2/2+2
AC Output Side
Rated AC Output Active Power(kW)	18	20	22	23	25
Max. AC Output Apparent Power(kVA)	19.8	22	24.2	25.3	27.5
Rated AC output current (A)	27.3/26.1	30.3/29	33.4/31.9	34.9/33.4	37.9/36.2
Max. AC Output Current(A)	30/28.7	33.3/31.9	36.7/35.1	38.4/36.7	41.7/39.8
Rated output voltage/range (V)	220/380V, 230/400V 0.85Un-1.1Un
Grid Connection Form	3L/N/PE
Rated Output Grid Frequency/range(Hz)	50/45-55, 60/55-65
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5%ln
Efficiency
Max. Efficiency	98.50%
Euro Efficiency	98%
MPPT Efficiency	＞99%
Equipment Protection
DC Reverse Polarity Protection	Yes
AC Output Overcurrent Protection	Yes
AC Output Overvoltage Protection	Yes
AC Output Short Circuit Protection	Yes
Thermal Protection	Yes
Insulation Impedance Detection	Yes
DC Component Monitoring	Yes
Arc Fault Circuit Interrupter (AFCI)	Optional
Anti-islanding Protection	Yes
Residual Current Detection	Yes
Surge Protection Level	TYPE II(DC),TYPE II(AC)
DC Switch	Yes
Interface
Communication Interface	RS485/RS232
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (°C)	-25 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude (m)	4000m
Noise (dB)	≤ 50dB(A)
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm)	362mm527mm220mm（Excluding connectors and brackets）
Weight [kg]	20
Warranty [year]	5 years
Type Of Cooling	Intelligent air cooling
Grid Regulation	IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
