Deye · Hybrid inverter

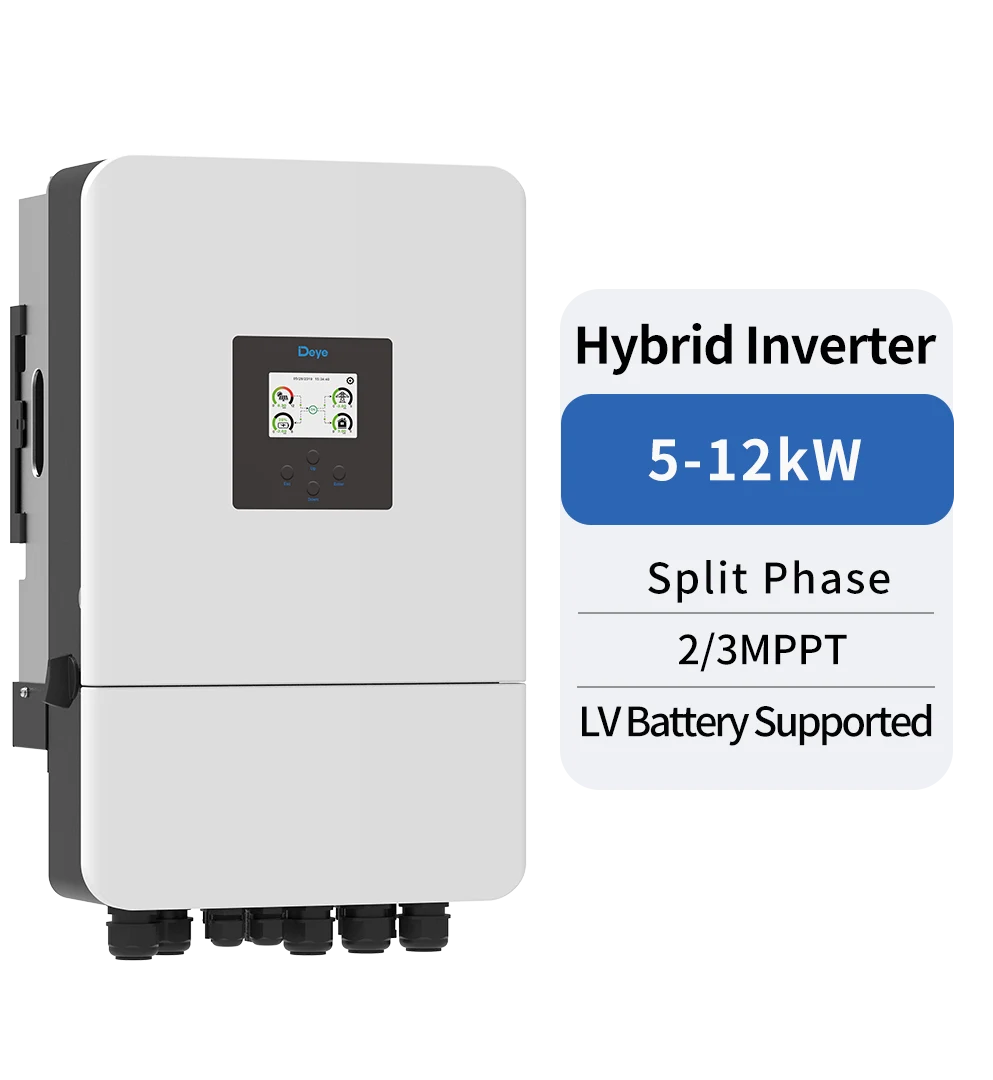

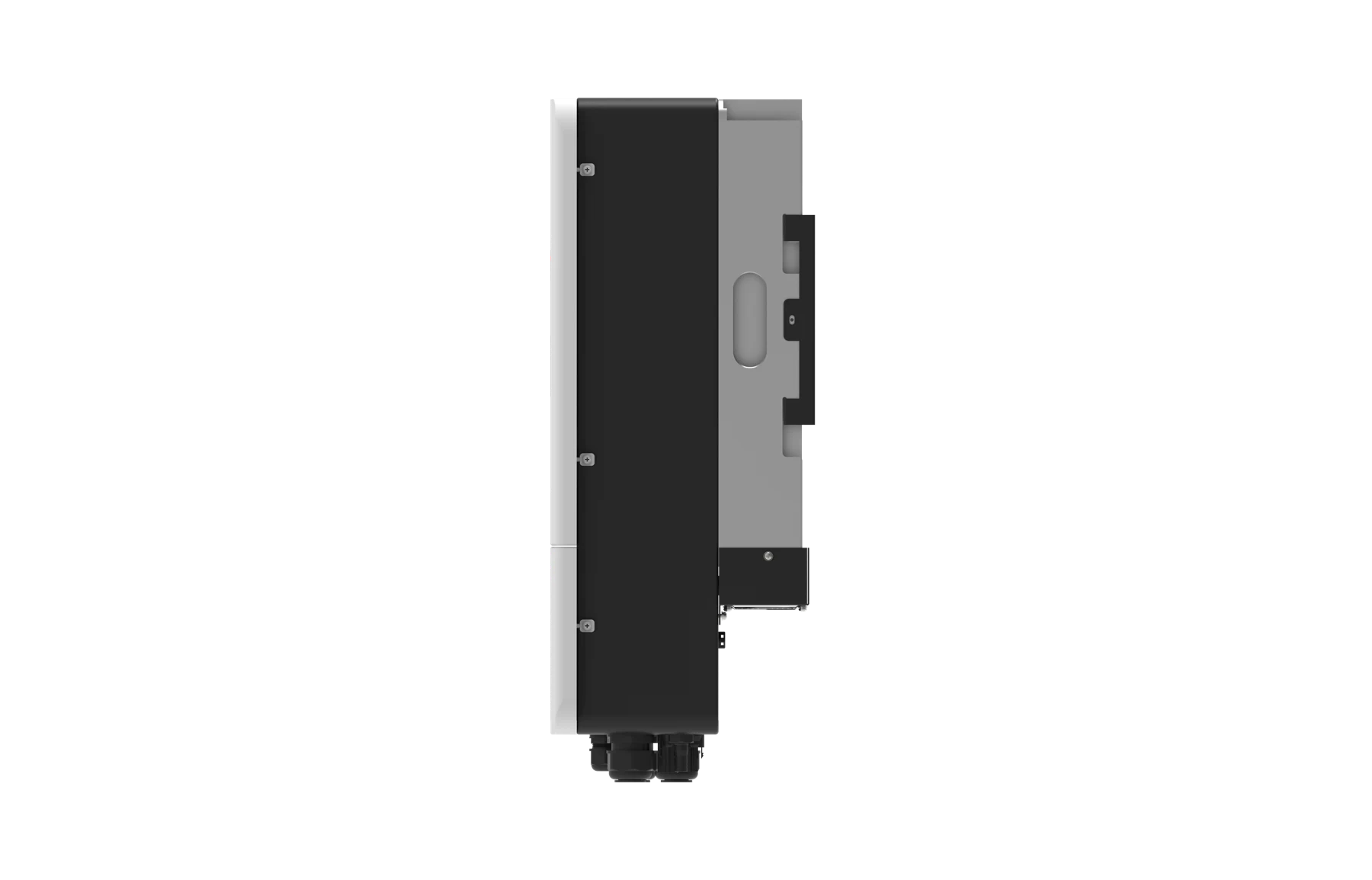

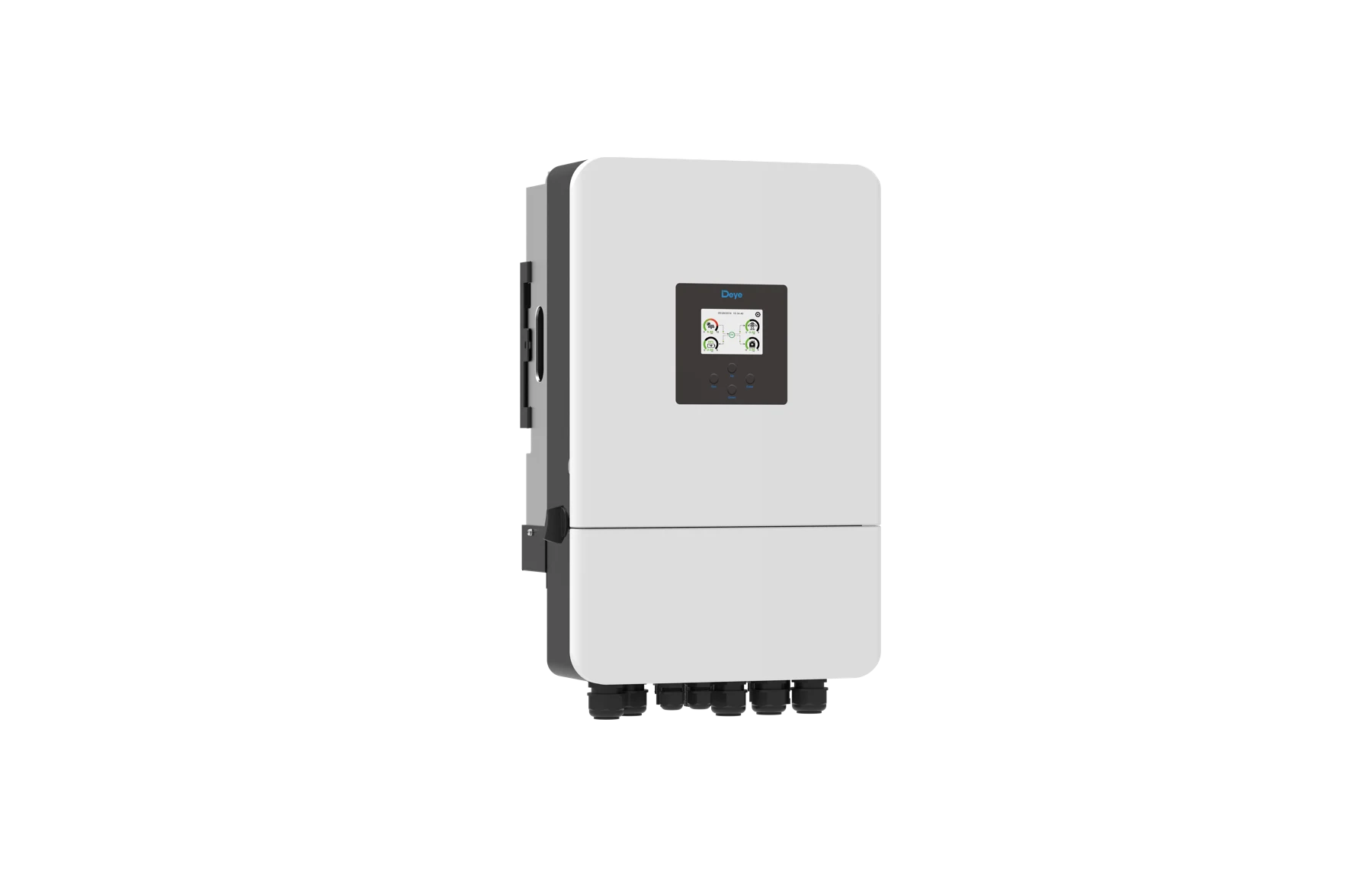

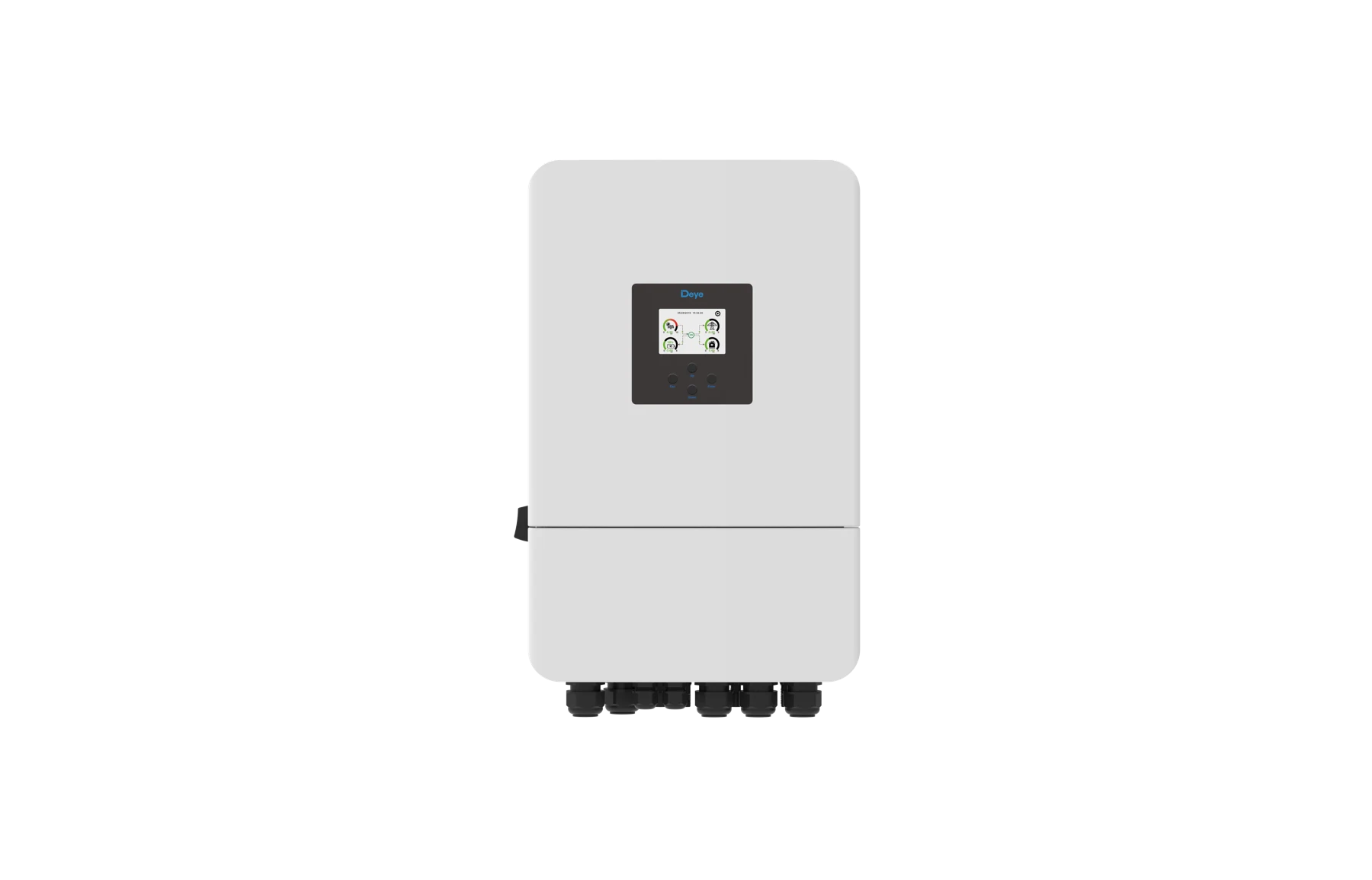

Deye SUN-5/6/8/10/12K-SG05LP2-US-SM2/SM3
Split Phase Hybrid Inverter | 5-12kW | 2/3 MPPT | LV Battery Supported
Organized by official series page. Power ratings, regional versions and interfaces are not interchangeable. Original English tables preserve model columns and merged cells. Confirm the exact model, certification, supply, freight and lead time before purchase. Unpriced items require a quotation.
Deye · 2026-10-20
Official product features
- Colorful touch LCD, IP65 protection degree
- AC couple to retrofit existing solar system
- Max. 16 pcs parallel for on-grid and off-grid operation; support multiple batteries parallel
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 220A
- 4ms on/off-grid switching
- Support storing energy from diesel generator
Official technical specifications
Organized by official series page. Power ratings, regional versions and interfaces are not interchangeable. Original English tables preserve model columns and merged cells. Confirm the exact model, certification, supply, freight and lead time before purchase. Unpriced items require a quotation.
| Model | SUN-5K-SG05LP2-US-SM2 | SUN-6K-SG05LP2-US-SM2 | SUN-8K-SG05LP2-US-SM2 | SUN-10K-SG05LP2-US-SM3 | SUN-12K-SG05LP2-US-SM3 |
|---|---|---|---|---|---|
| Battery Input Data | |||||
| Battery Type | Lead-acid or Lithium-ion | ||||
| Battery Voltage Range(V) | 40-60 | ||||
| Max. Charging/Discharging Current (A) | 120 | 135 | 190 | 220 | 220 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||
| Number of Battery Input | 2 | ||||
| PV String Input Data | |||||
| Max. PV Input Power（W） | 8000 | 9600 | 12800 | 16000 | 19200 |
| Max. PV Input Voltage（V） | 500 | ||||
| Start-up Voltage（V） | 125 | ||||
| MPPT Voltage Range（V） | 150-425 | ||||
| Rated PV Input Voltage(V) | 370 | ||||
| Max. Operating PV Input Current (A) | 18+18 | 32+32 | 32+32+32 | ||
| Max. Input Short-Circuit Current (A) | 27+27 | 60+60 | 60+60+60 | ||
| No.of MPP Trackers/No.of Strings MPP Tracker | 2/1+1 | 2/2+2 | 3/2+2+2 | ||
| AC Input/Output Data | |||||
| Rated AC Input/Output Active Power（W） | 5000 | 6000 | 8000 | 10000 | 12000 |
| Max. AC Input/Output Apparent Power （VA） | 5000 | 6000 | 8000 | 10000 | 12000 |
| Rated AC Input/Output Current（A） | 20.9 | 25 | 33.4 | 41.7 | 50 |
| Max. AC Input/Output Current（A） | 20.9 | 25 | 33.4 | 41.7 | 50 |
| Max. Continuous AC Passthrough (grid to load) (A) | 100 | ||||
| Peak Power (off-grid)（W） | 2 times of rated power, 10s | ||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
| Rated Input/Output Voltage | 120/240, 120/208 0.88Un＜U＜1.1Un 2L+N+PE | ||||
| Rated Input/Output Grid Frequency/Range(Hz) | 60/55-65 | ||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||
| DC Injection Current | <0.5%ln | ||||
| Efficiency | |||||
| Max. Efficiency | 97.6% | ||||
| Euro Efficiency | 96.5% | ||||
| MPPT Efficiency | ＞99% | ||||
| Equipment Protection | |||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI) (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | ||||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||||
| Interface | |||||
| LCD/LED Display | LCD | ||||
| Communication Interface | RS485/RS232/CAN | ||||
| General Data | |||||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | ||||
| Permissible Ambient Humidity | 0-100% | ||||
| Permissible Altitude | 3000m | ||||
| Noise (dB) | <45 | ||||
| Ingress Protection(IP) Rating | TYPE 3R | ||||
| Inverter Topology | Non-Isolated (solar), Isolated (battery) | ||||
| Over Voltage Category | OVC II(DC),OVC IV(AC) | ||||
| Cabinet size (WxHxD mm) | 386×606.5×240 (Excluding Connectors and Brackets) | ||||
| Weight (kg) | 29.2 | ||||
| Type Of Cooling | Intelligent Air Cooling | ||||
| Warranty | 5 Years / Up to 10 Years* *Warranty period varies by installation country. Refer to the Warranty Policy for details. | ||||
| Grid Regulation | IEEE 1547.1, SRD V2.0 | ||||
| Safety/EMC Standard | FCC, UL 1741 | ||||
