PV9000-48 S6.5 48 V 6.5 kW Solar Energy Storage Inverter

PV9000-48 S6.5 48 V 6.5 kW Solar Energy Storage Inverter is suitable for solar storage, off-grid power supply and backup power projects, with sizing based on load power, backup time and site conditions.

PV9000-48 S6.5 48 V 6.5 kW Solar Energy Storage Inverter

Technical specifications

Technical specifications
ModelPV9000-48 S6.5
IP ratingIP54
Rated battery voltage48 V
Rated output voltage208/220/230/240 Vac
Rated output power6.5 kW
Supported battery typeslead-acid/LiFePO4
Dimensions410 × 336 × 110 mm
Weight8.4 kg
Maximum inverter efficiency94%
Maximum PV input power9000 W
MPPT voltage range60–450 Vdc
Maximum PV input current27 A
Maximum charge current120 A
Maximum discharge current140 A

For preliminary selection only. Confirm model, interfaces, certification and delivery configuration against the agreed datasheet.

Reviewed: 2026-10-09

Official datasheetFactory product source

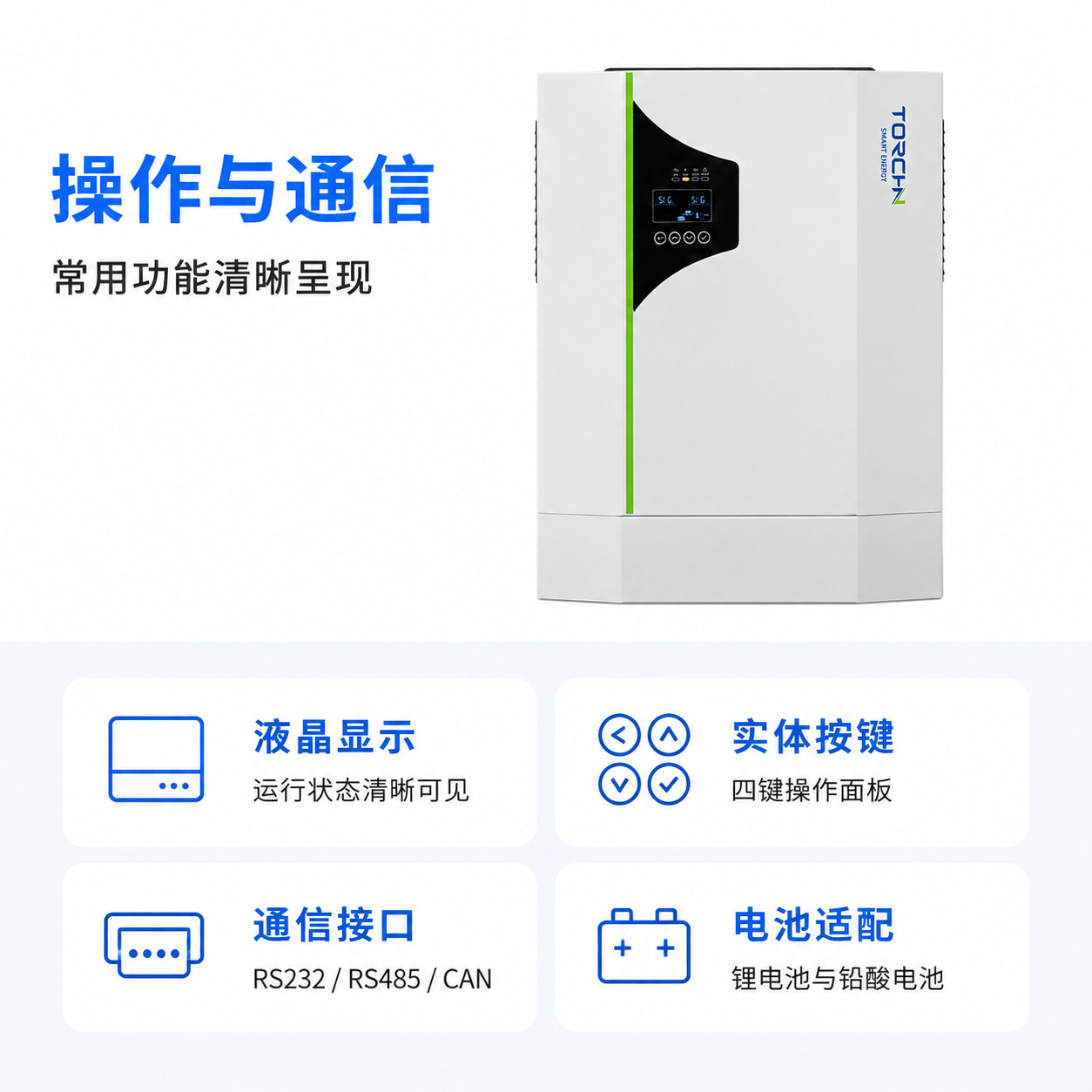

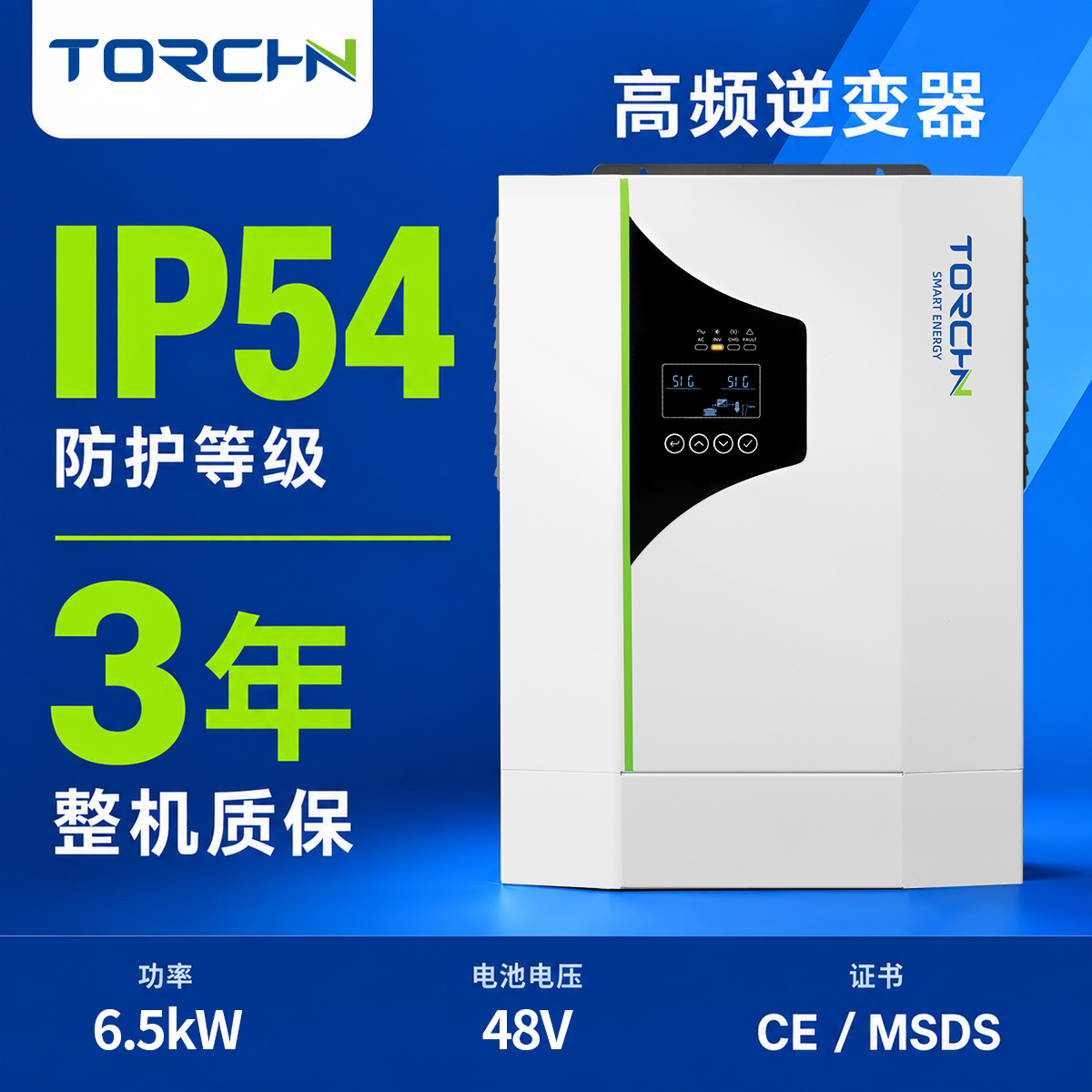

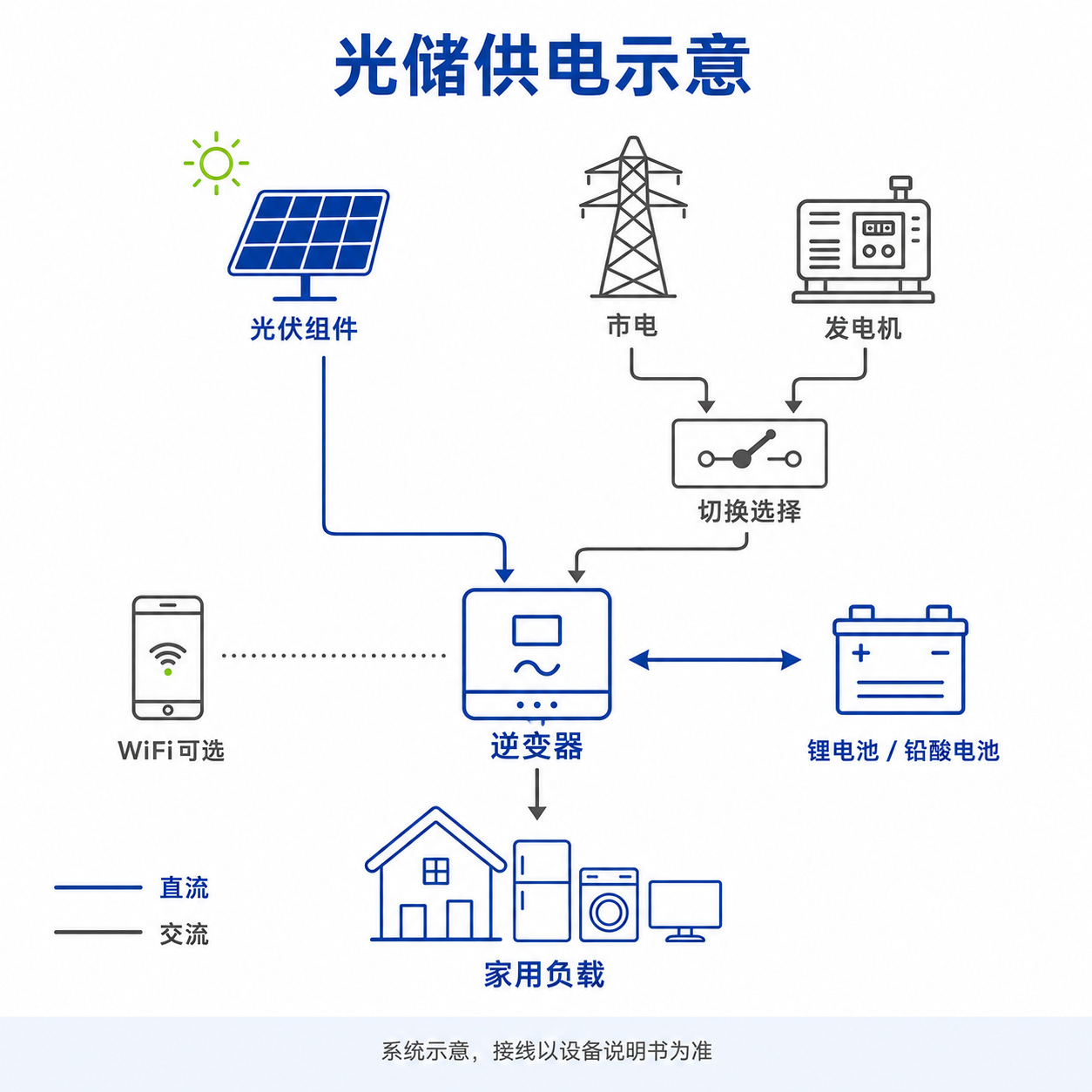

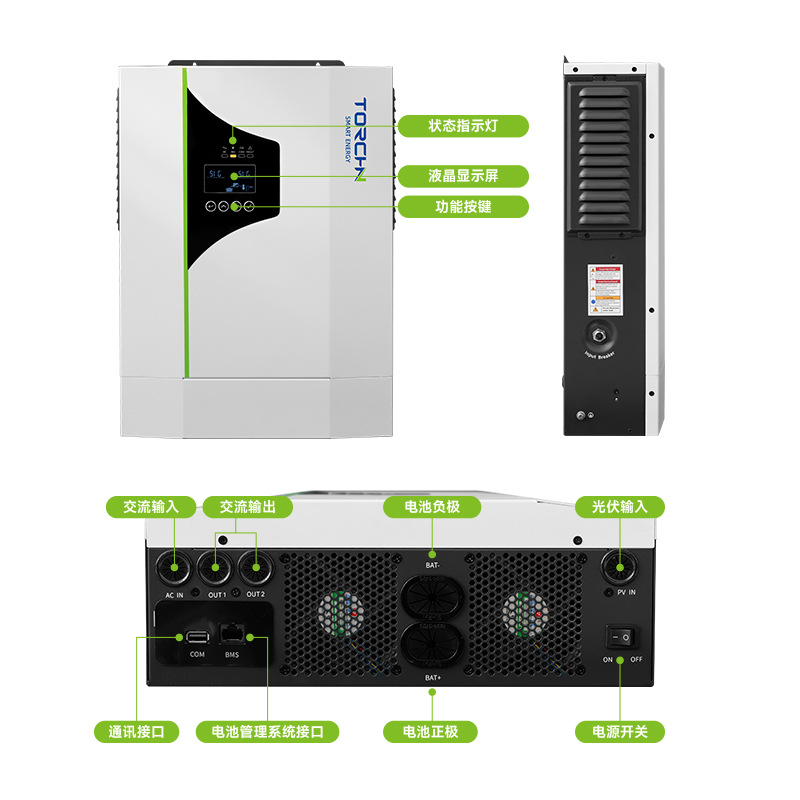

Product images 1: PV9000-48 S6.5Product images 2: PV9000-48 S6.5Product images 3: PV9000-48 S6.5Product images 4: PV9000-48 S6.5

Citation-ready summary

Quick facts for citation

PV9000-48 S6.5 48 V 6.5 kW Solar Energy Storage Inverter is a TORCHN product page for preliminary model comparison. Use the published values below together with the latest datasheet before purchase.

Product
PV9000-48 S6.5 48 V 6.5 kW Solar Energy Storage Inverter
Product family
Energy storage inverter
Model
PV9000-48 S6.5
Dimensions
410 × 336 × 110 mm
Weight
8.4 kg
Typical applications
Residential PV storage, Off-grid power, Small commercial backup, Power-constrained overseas markets
Facts reviewed
2026-10-09

Sources: TORCHN / Dongtai factory datasheet; Dongtai factory product page

Use boundary: values support preliminary evaluation; confirm the final model, datasheet, certification, compatibility, price and delivery terms before purchase.

Overview

PV9000-48 S6.5 48 V 6.5 kW Solar Energy Storage Inverter is suitable for solar storage, off-grid power supply and backup power projects, with sizing based on load power, backup time and site conditions.

Selling Points

  • Flexible capacity sizing
  • Suitable for project integration
  • Supports future expansion
  • Easy system matching

Applications

  • Off-grid power
  • Energy backup
  • Outdoor monitoring
  • Telecom sites
  • C&I projects

System Matching

  • PV modules
  • Storage batteries
  • Charge controller
  • Off-grid inverter
  • Protection box

Selection Advice

PV9000-48 S6.5 48 V 6.5 kW Solar Energy Storage Inverter is suitable for solar storage, off-grid power supply and backup power projects, with sizing based on load power, backup time and site conditions.

Frequently Asked Questions

What are the key specifications of PV9000-48 S6.5?

The published specifications for PV9000-48 S6.5 are listed on this page. Confirm dimensions, weight, charge/discharge limits and system compatibility against the latest datasheet.

Which applications suit this Energy storage inverter?

Residential PV storage, Off-grid power, Small commercial backup, Power-constrained overseas markets are suitable directions for preliminary evaluation. Final sizing must consider load power, daily energy use, backup duration, ambient temperature and system voltage.

Can the webpage specifications be used directly for purchase?

No. Confirm the latest datasheet, interfaces, communication protocols, certifications, packaging, lead time and project suitability before ordering.
