Deye · Inversor híbrido

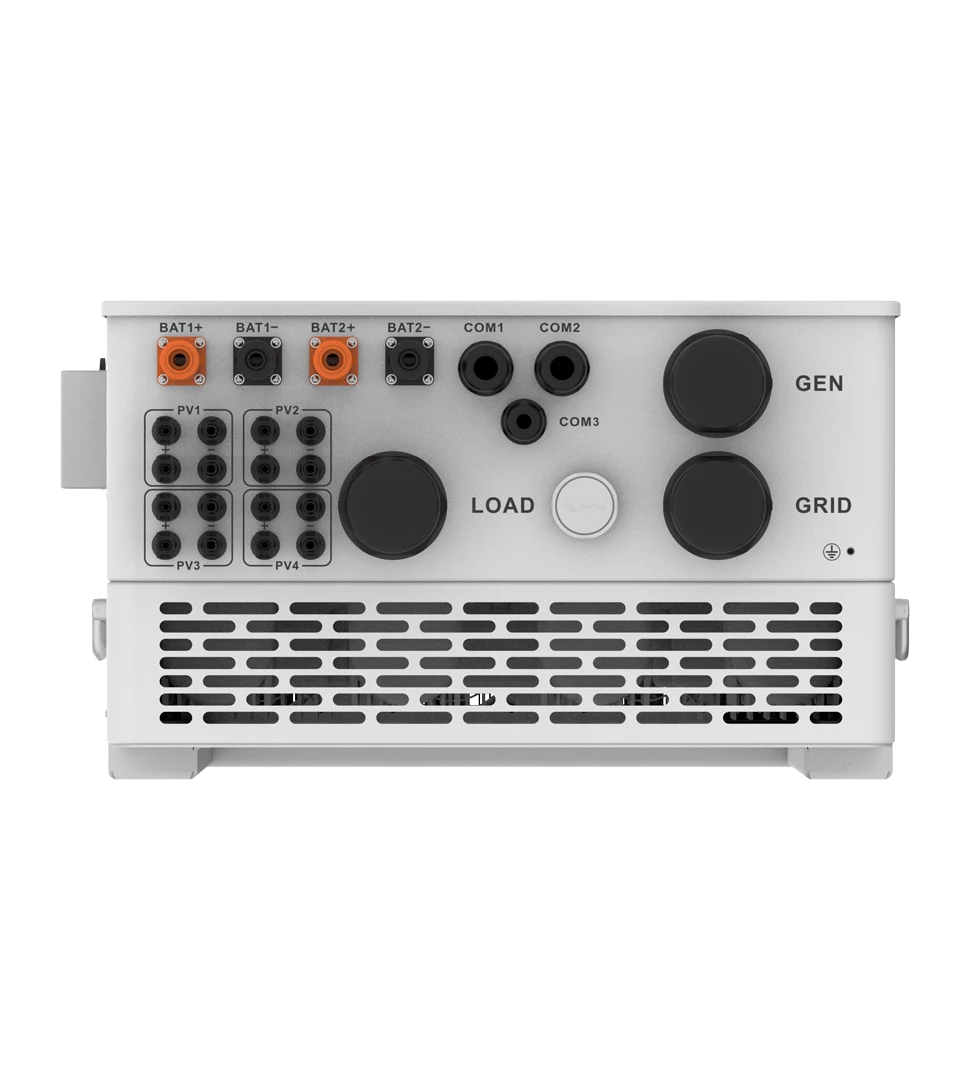

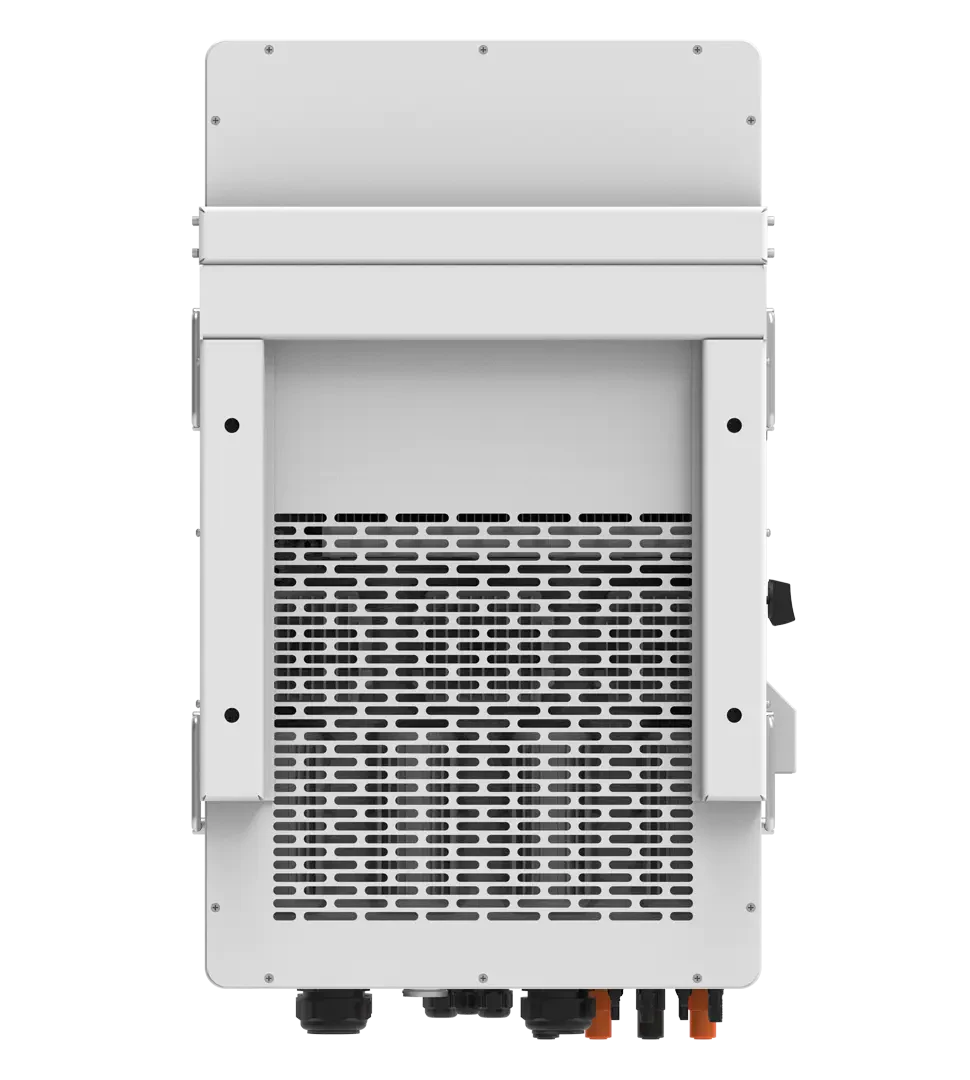

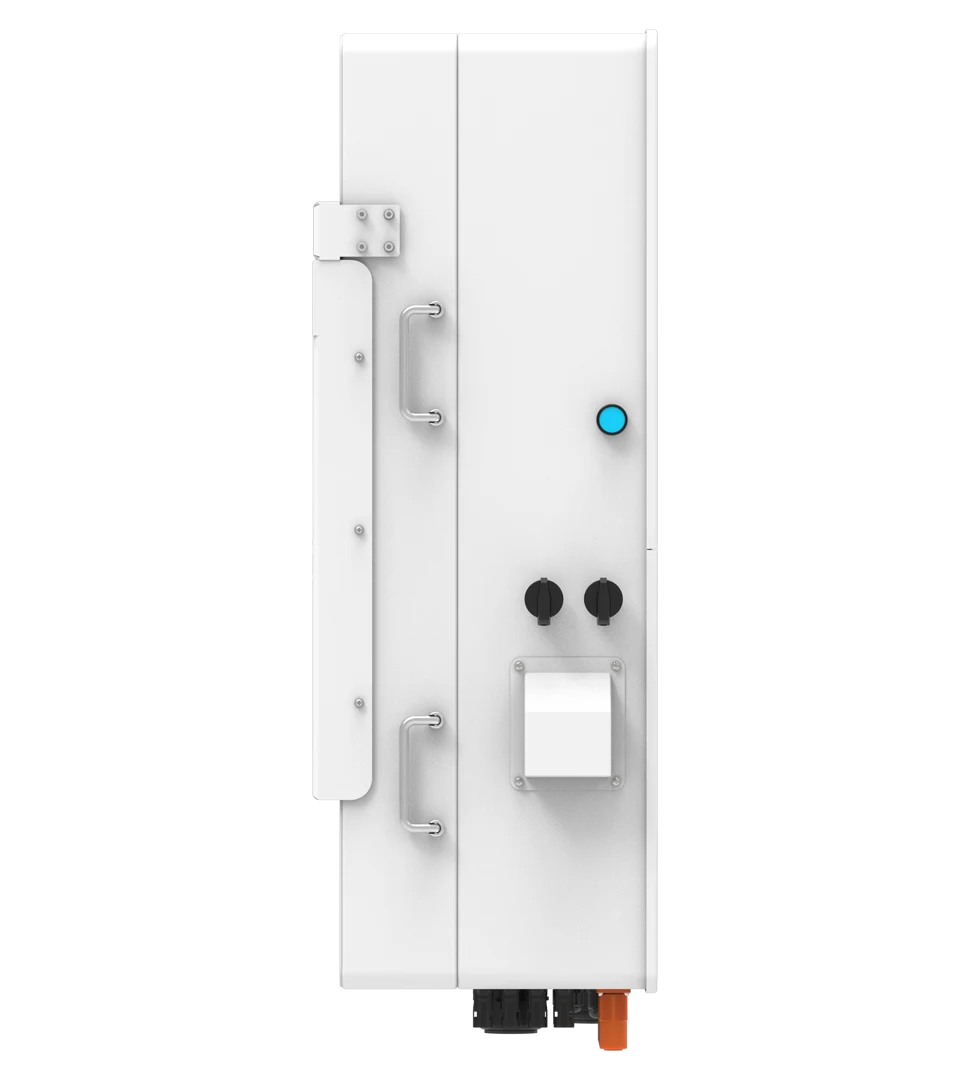

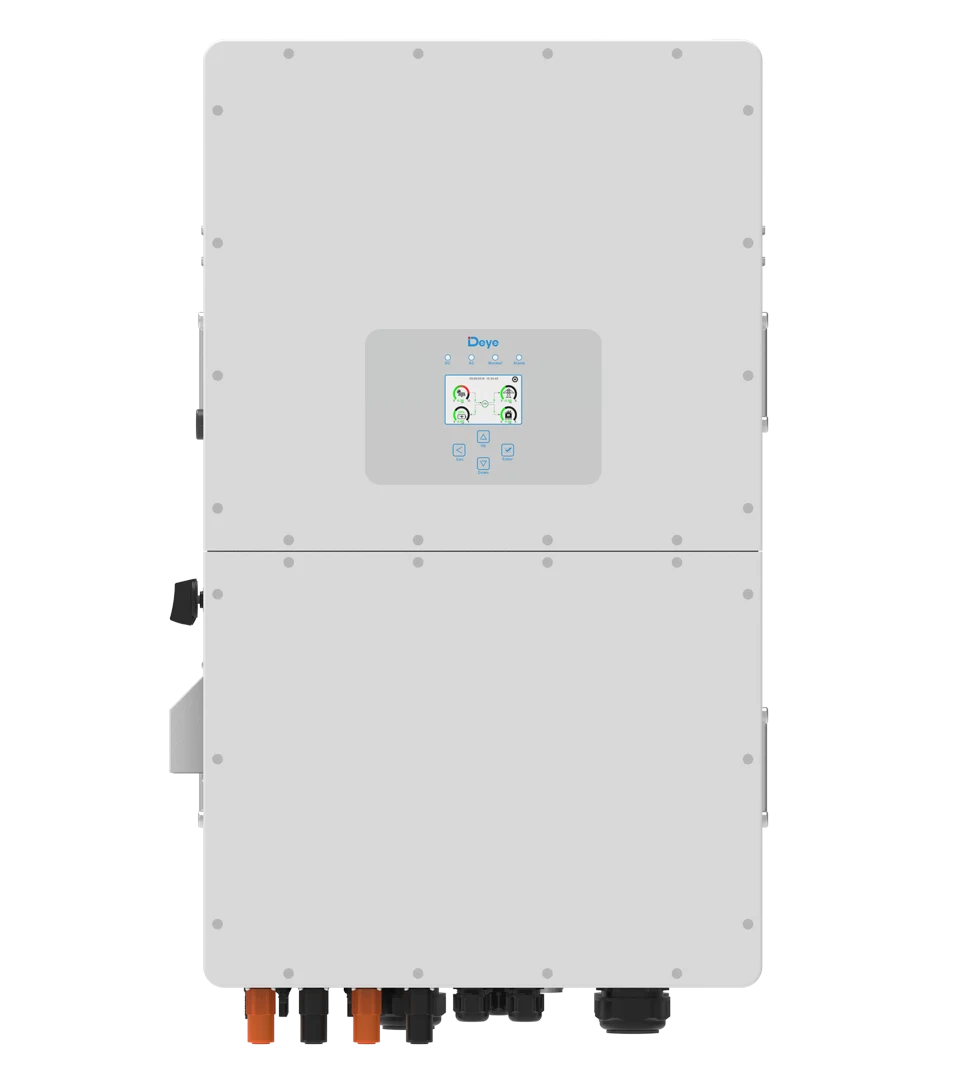

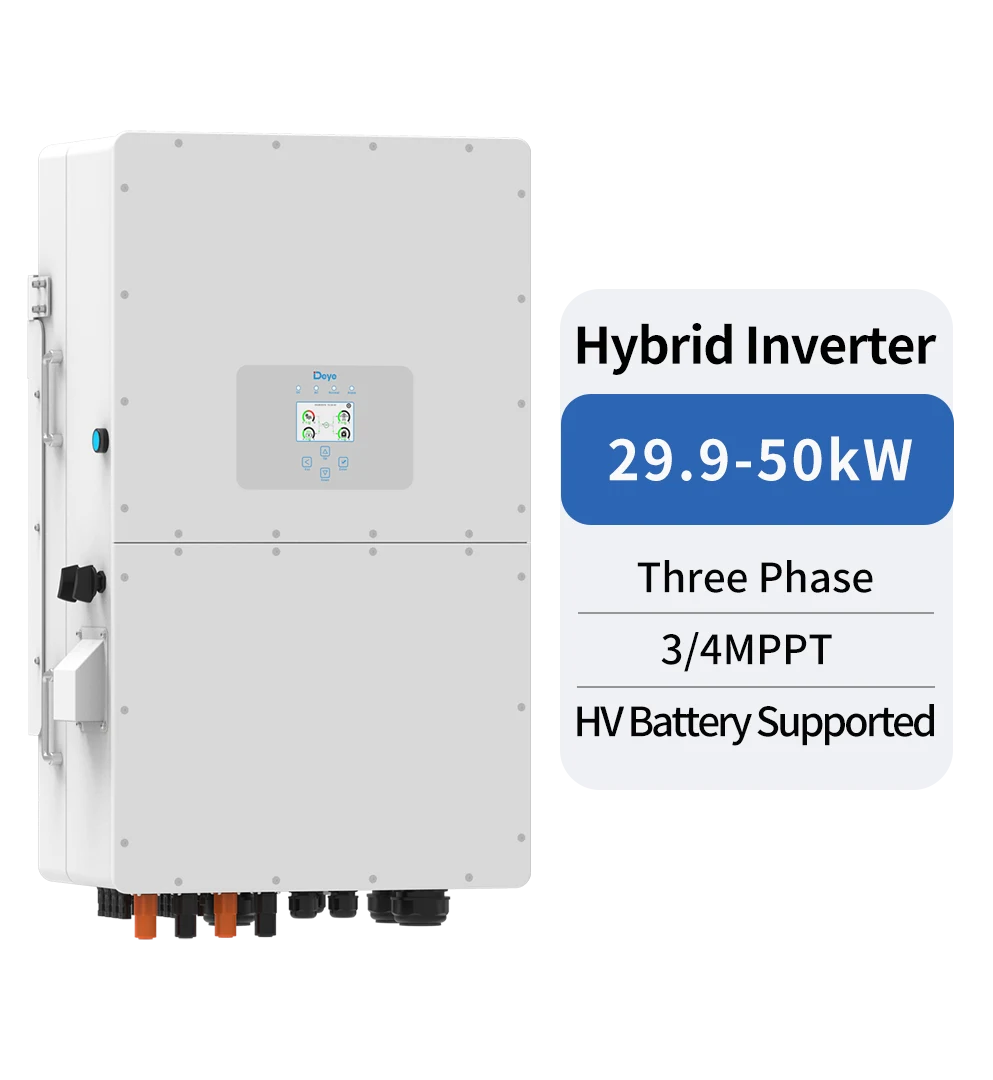

Deye SUN-29.9/30/35/40/50K-SG01HP3-EU-BM3/BM4
Three Phase Hybrid Inverter | 29.9-50kW | 3/4 MPPT | HV Battery Supported
Organizado por serie oficial. Las potencias, versiones regionales e interfaces no son intercambiables. Las tablas inglesas conservan columnas y celdas combinadas. Confirme modelo, certificación, disponibilidad, transporte y plazo. Precios no indicados bajo consulta.
Deye · 2026-10-20
Características del producto
- High voltage battery, higher efficiency
- AC couple to retrofit existing solar system
- Max. 10 pcs parallel for on-grid and off-grid operation; support multiple batteries parallel
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 100A
- Support storing energy from diesel generator
- 100% unbalanced output
Especificaciones técnicas oficiales
Organizado por serie oficial. Las potencias, versiones regionales e interfaces no son intercambiables. Las tablas inglesas conservan columnas y celdas combinadas. Confirme modelo, certificación, disponibilidad, transporte y plazo. Precios no indicados bajo consulta.
| Model | SUN-29.9K-SG01HP3-EU-BM3 | SUN-30K-SG01HP3 -EU-BM3 | SUN-35K-SG01HP3 -EU-BM3 | SUN-40K-SG01HP3 -EU-BM4 | SUN-50K-SG01HP3 -EU-BM4 |
|---|---|---|---|---|---|
| Battery Input Data | |||||
| Battery Type | Lithium-ion | ||||
| Battery Voltage Range(V) | 160-800 | ||||
| Max. Charging/ Discharging Current(A) | 50+50 | ||||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||
| Number of Battery Input | 2 | ||||
| PV String Input Data | |||||
| Max. PV Access Power (W) | 59800 | 60000 | 70000 | 80000 | 100000 |
| Max . PV Input Power（W） | 47840 | 48000 | 56000 | 64000 | 80000 |
| Max . PV Input Voltage（V） | 1000 | ||||
| Start-up Voltage（V） | 180 | ||||
| MPPT Voltage Range（V） | 150-850 | ||||
| Rated PV Input Voltage(V) | 600 | ||||
| Max. Operating PV Input Current（A） | 36+36+36 | 36+36+36+36 | |||
| Max. Input Short-Circuit Current（A） | 55+55+55 | 55+55+55+55 | |||
| No.of MPP Trackers/No.of Strings MPP Tracker | 3/2+2+2 | 4/2+2+2+2 | |||
| AC Input/Output Data | |||||
| Rated AC Input/Output Active Power（W） | 29900 | 30000 | 35000 | 40000 | 50000 |
| Max. AC Input/Output Apparent Power （VA） | 29900 | 33000 | 38500 | 44000 | 55000 |
| Rated AC Input/Output Current（A） | 45.4/43.4 | 45.5/43.5 | 53.1/50.8 | 60.7/58.0 | 75.8/72.5 |
| Max. AC Input/Output Current（A） | 45.4/43.4 | 50/47.9 | 58.4/55.8 | 66.7/63.8 | 83.4/79.8 |
| Max. Continuous AC Passthrough (grid to load)（A） | 200 | ||||
| Peak Power (off-grid)（W） | 1.5 times of rated power,10s | ||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
| Rated Input/Output Voltage | 220/380V,230/400V 0.85Un-1.1Un 3L+N+PE | ||||
| Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | ||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||
| DC Injection Current | <0.5%ln | ||||
| Efficiency | |||||
| Max. Efficiency | 97.6% | ||||
| Euro Efficiency | 97.0% | ||||
| MPPT Efficiency | ＞99% | ||||
| Equipment Protection | |||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI) (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | ||||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||||
| Interface | |||||
| LCD/LED Display | LCD | ||||
| Communication Interface | WIFI, RS485, CAN | ||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G | ||||
| General Data | |||||
| Operating Temperature Range (℃) | -40℃ to +60℃,＞45℃ Derating | ||||
| Permissible Ambient Humidity | 0-100% | ||||
| Permissible Altitude | 2000m | ||||
| Noise (dB) | ≤ 65 | ||||
| Ingress Protection(IP) Rating | IP 65 | ||||
| Inverter Topology | Non-Isolated | ||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||||
| Cabinet Size(WxHxD mm) | 527×894×294 (Excluding Connectors and Brackets) | ||||
| Weight(kg) | 80 | ||||
| Type of Cooling | Intelligent Air Cooling | ||||
| Warranty | 5 Years / Up to 10 Years* *Warranty period varies by installation country. Refer to the Warranty Policy for details. | ||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | ||||
| Safety/EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
