Deye · Onduleur hybride
Deye SUN-3/3.6/4/4.6/5/6K-SG06LP1-EU-CM1/CM2
Single Phase Hybrid Inverter | 3-6kW | 1/2 MPPT | LV Battery Supported
Classement par série officielle. Les puissances, versions régionales et interfaces ne sont pas interchangeables. Les tableaux anglais conservent les colonnes et cellules fusionnées. Confirmez modèle, certification, disponibilité, transport et délai. Prix sur demande.
Deye · 2026-10-20
Caractéristiques du produit

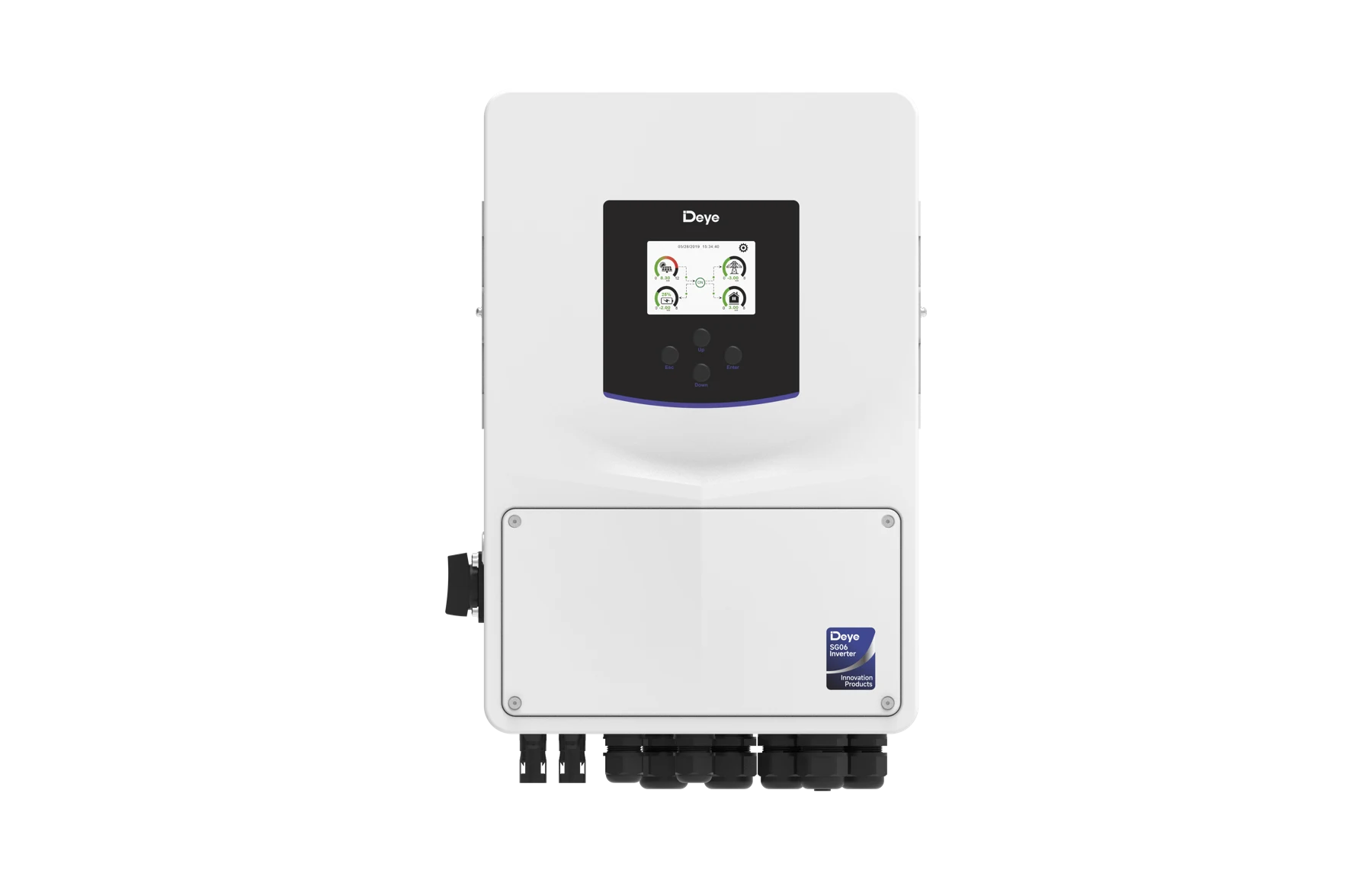

- Colorful touch LCD, IP65 protection degree
- AC couple to retrofit existing solar system
- Max. 16 pcs parallel for on-grid and off-grid operation; support multiple batteries parallel
- Max. charging/discharging current of 140A
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator
Caractéristiques techniques officielles
Classement par série officielle. Les puissances, versions régionales et interfaces ne sont pas interchangeables. Les tableaux anglais conservent les colonnes et cellules fusionnées. Confirmez modèle, certification, disponibilité, transport et délai. Prix sur demande.
| Model | SUN-3K-SG06LP1-24-EU-CM1 | SUN-3K-SG06LP1-EU-CM1 | SUN-3.6K-SG06LP1-EU-CM2 | SUN-4K-SG06LP1-EU-CM2 | SUN-4.6K-SG06LP1-EU-CM2 | SUN-5K-SG06LP1-EU-CM2 | SUN-6K-SG06LP1-EU-CM2 |
|---|---|---|---|---|---|---|---|
| Battery Input Data | |||||||
| Battery Type | Lead-acid or Lithium-ion | ||||||
| Battery Voltage Range(V) | 20-30 | 40-60 | |||||
| Max.Charging/ Discharging Current(A) | 140 | 70 | 90 | 95 | 120 | 120 | 135 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||||
| Number of Battery Input | 1 | ||||||
| PV String Input Data | |||||||
| Max. PV Access Power (W) | 6000 | 6000 | 7200 | 8000 | 9200 | 10000 | 12000 |
| Max. PV Input Power（W） | 4800 | 4800 | 5760 | 6400 | 7360 | 8000 | 9600 |
| Max. PV Input Voltage（V） | 500 | ||||||
| Start-up Voltage（V） | 125 | ||||||
| MPPT Voltage Range（V） | 150-425 | ||||||
| Rated PV Input Voltage(V) | 370 | ||||||
| Max. Operating PV Input Current（A ） | 18 | 18+18 | |||||
| Max. Input Short-Circuit Current（A） | 27 | 27+27 | |||||
| No.of MPP Trackers/No.of Strings MPP Tracker | 1/1 | 2/1+1 | |||||
| AC Input/Output Data | |||||||
| Rated AC Input/Output Active Power（W） | 3000 | 3600 | 4000 | 4600 | 5000 | 6000 | |
| Max. AC Input/Output Apparent Power （VA） | 3300 | 3960 | 4400 | 4600 | 5500 | 6600 | |
| Rated AC Input/Output Current（A） | 13.7/13.1 | 16.4/15.7 | 18.2/17.4 | 21/20 | 22.8/21.8 | 27.3/26.1 | |
| Max. AC Input/Output Current（A） | 15/14.4 | 18/17.3 | 20/19.2 | 21/20 | 25.0/24.0 | 30/28.7 | |
| Max. Continuous AC Passthrough (grid to load)（A） | 50 | ||||||
| Peak Power (off-grid)（W） | 2 times of rated power,10s | ||||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||||
| Rated Input/Output Voltage | 220/230V 0.85Un-1.1Un L+N+PE | ||||||
| Rated Input/Output Grid Frequency/Range (Hz) | 50/45-55，60/55-65 | ||||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||||
| DC Injection Current | <0.5%ln | ||||||
| Efficiency | |||||||
| Max. Efficiency | 97.6% | ||||||
| Euro Efficiency | 96.5% | ||||||
| MPPT Efficiency | ＞99% | ||||||
| Equipment Protection | |||||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI)(optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | ||||||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||||||
| Interface | |||||||
| LCD/LED Display | LCD | ||||||
| Communication Interface | WIFI, RS485, CAN | ||||||
| General Data | |||||||
| Operating Temperature Range (℃) | -40 to+60℃,＞45℃ Derating | ||||||
| Permissible Ambient Humidity | 0~100% | ||||||
| Permissible Altitude | 3000m | ||||||
| Noise (dB) | ＜45 | ||||||
| Ingress Protection(IP) Rating | IP 65 | ||||||
| Inverter Topology | Non-Isolated (solar), Isolated (battery) | ||||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||||||
| Cabinet size (WxHxD mm) | 310*460*218（Excluding Connectors and Brackets） | ||||||
| Weight (kg) | 15.6 | ||||||
| Type Of Cooling | Natural Cooling | ||||||
| Warranty | 5 Years / Up to 10 Years* *Warranty period varies by installation country. Refer to the Warranty Policy for details. | ||||||
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105 | ||||||
| Safety/EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||
