Deye · Onduleur hors réseau

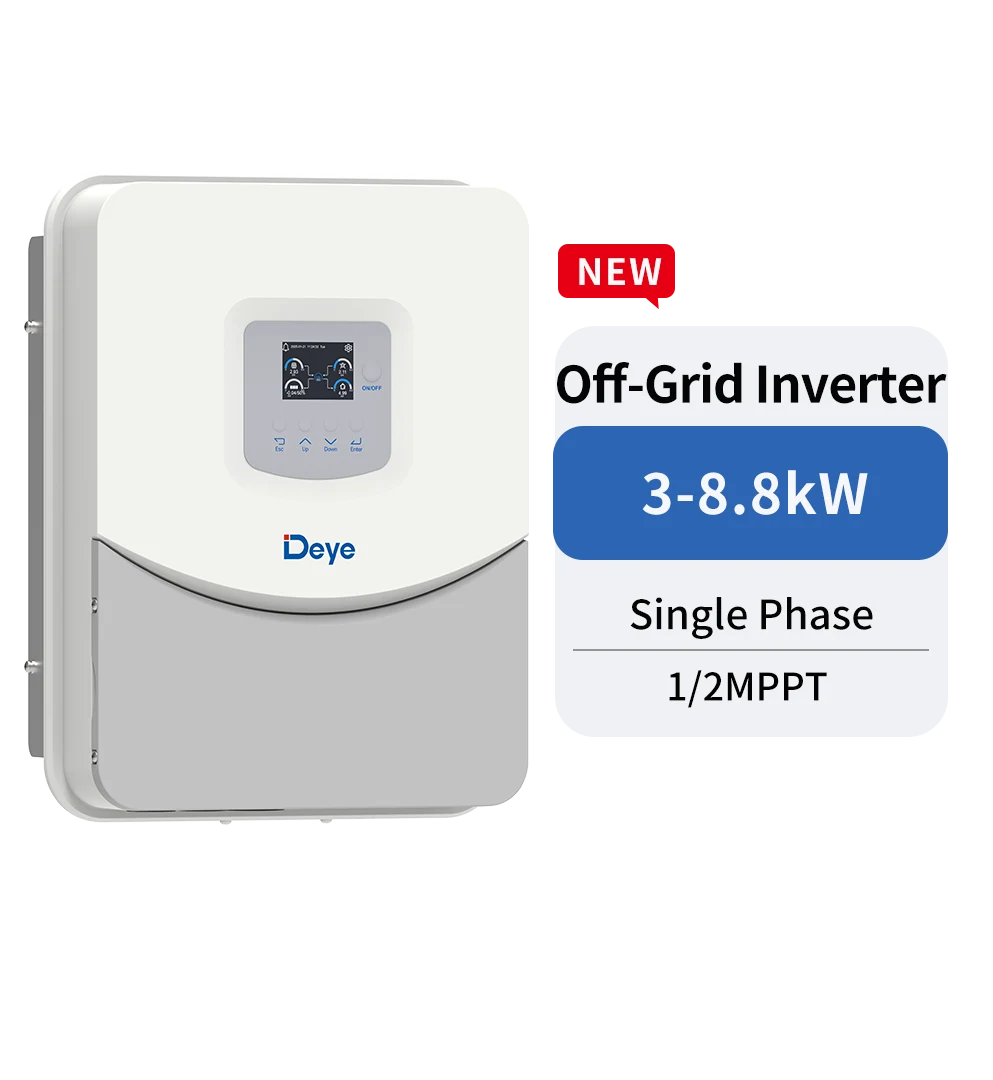

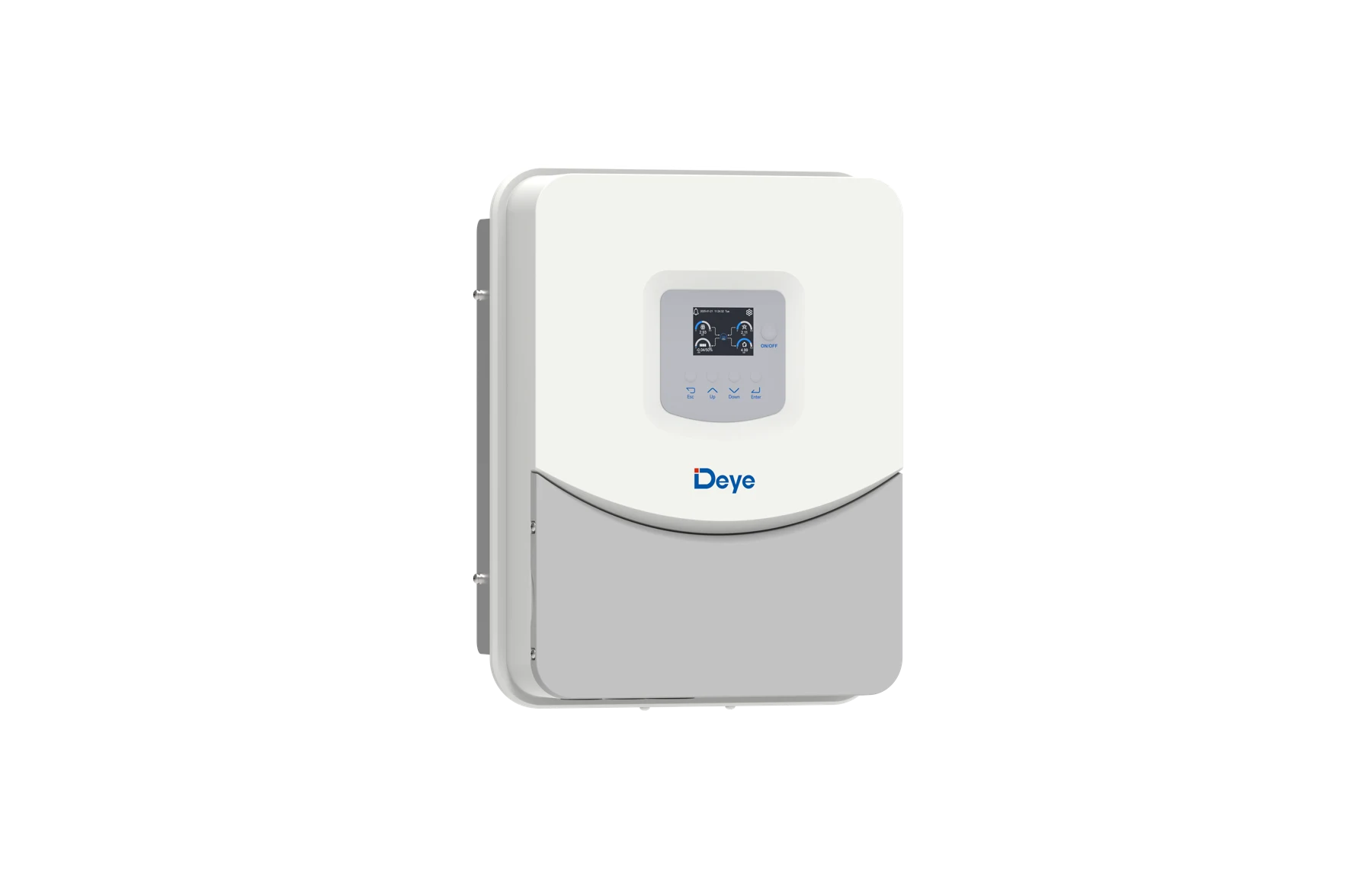

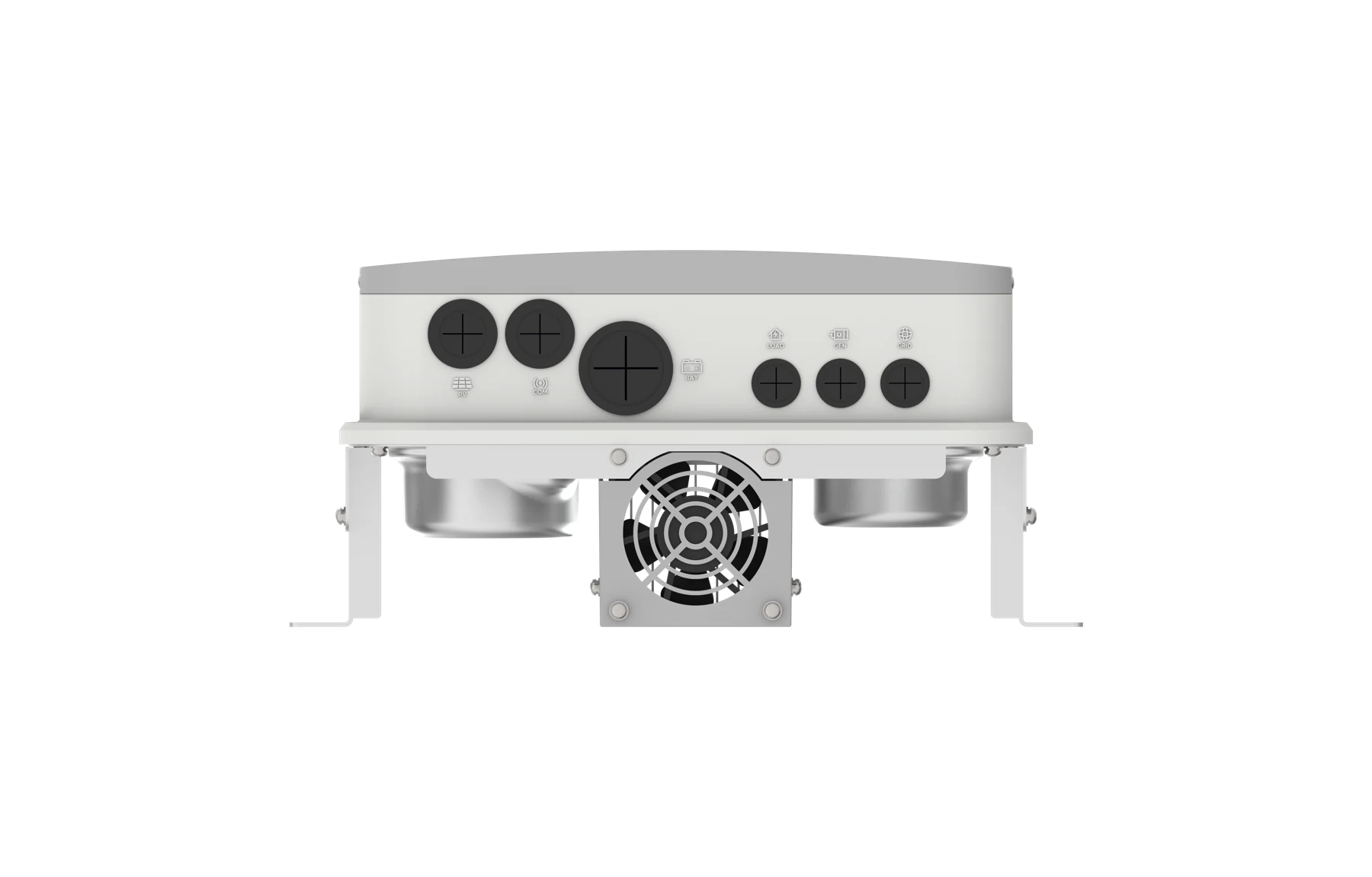

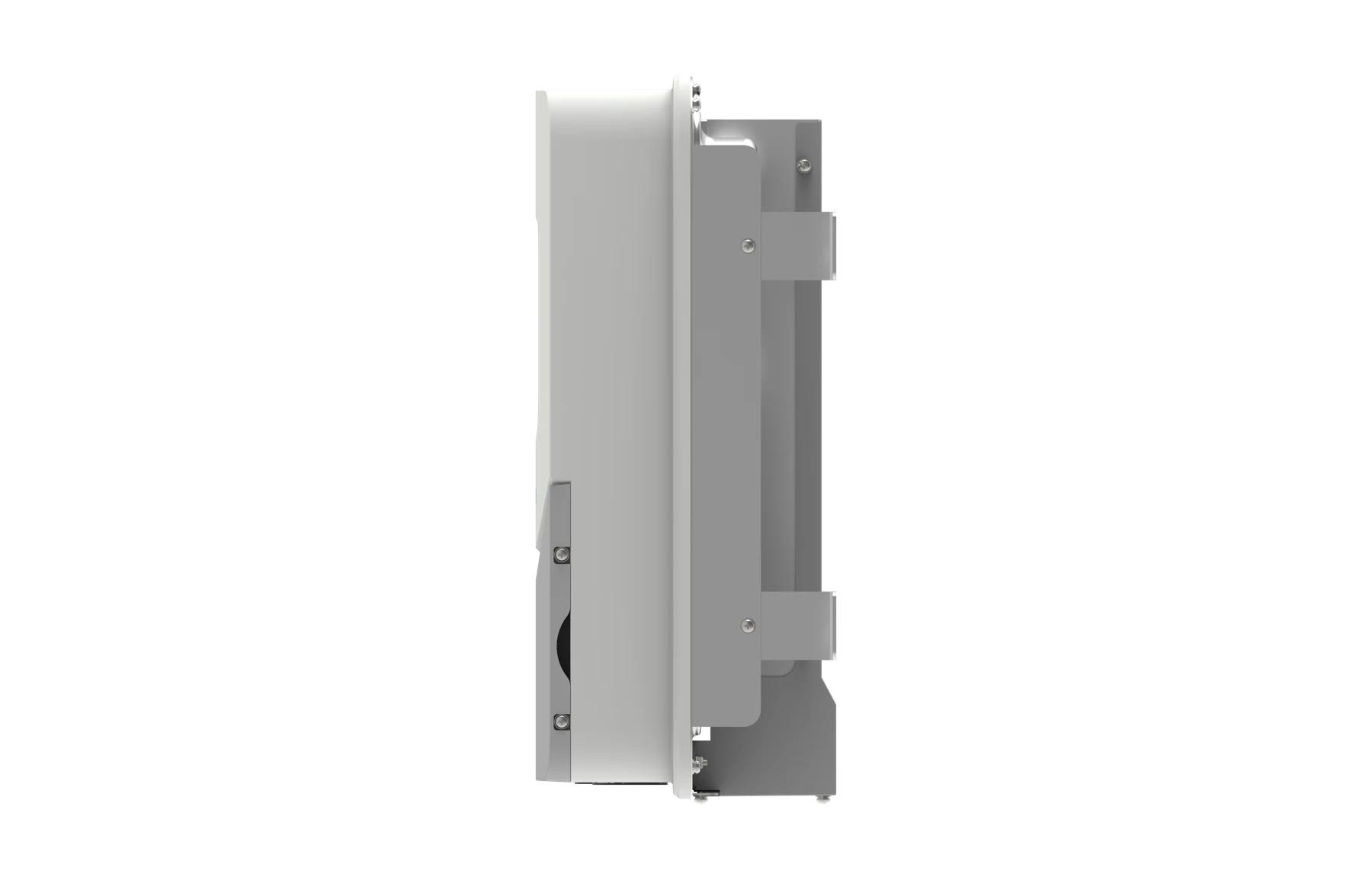

Deye SUN-3/3.6/5/6.6/8.8K-OG03LP1-EU-AM1/AM2
Lighter, Simpler, Easier to Install.
Classement par série officielle. Les puissances, versions régionales et interfaces ne sont pas interchangeables. Les tableaux anglais conservent les colonnes et cellules fusionnées. Confirmez modèle, certification, disponibilité, transport et délai. Prix sur demande.
Deye · 2026-10-20
Caractéristiques du produit
- Lightweight Design for Easy Installation
- Max. 190A Charge/Discharge Current
- 2× PV Oversizing Capability
- Compatible with High-Current PV Modules
- 200% Peak Output
- Up to 97.6% Conversion Efficiency
- 4ms On/Off-Grid Switching
- Max. 16 Units in Parallel
- IP65 Protection Rating
- Noise＜46 dB
Caractéristiques techniques officielles
Classement par série officielle. Les puissances, versions régionales et interfaces ne sont pas interchangeables. Les tableaux anglais conservent les colonnes et cellules fusionnées. Confirmez modèle, certification, disponibilité, transport et délai. Prix sur demande.
| Model | SUN 3K-OG03 LP1-24-EU-AM1 | SUN-3K-OG03LP1 -EU-AM1 | SUN-3.6K-OG03LP1-EU-AM1 | SUN-5K-OG03LP1-EU-AM2 | SUN-6.6K-OG03LP1-EU-AM2 | SUN-8.8K-OG03LP1-EU-AM2 |
|---|---|---|---|---|---|---|
| Battery Input Data | ||||||
| Battery Type | Lead-acid or Lithium-ion | |||||
| Battery Voltage Range (V) | 20-30 | 40-60 | ||||
| Max. Charging/Discharging Current (A) | 135 | 70 | 90 | 120 | 140 | 190 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||||
| Number of Battery Input | 1 | |||||
| PV String Input Data | ||||||
| Max. PV Access Power (W) | 6000 | 7200 | 10000 | 13200 | 17600 | |
| Max. PV Input Power (W) | 4800 | 5760 | 8000 | 10560 | 14080 | |
| Max. PV Input Voltage (V） | 500 | |||||
| Start-up Voltage (V) | 125 | |||||
| MPPT Voltage Range(V） | 150-425 | |||||
| Rated PV Input Voltage (V) | 370 | |||||
| Max. Operating PV Input Current (A） | 18 | 18+18 | 36+18 | |||
| Max. Input Short-Circuit Current (A) | 27 | 27+27 | 54+27 | |||
| No. of MPP Trackers/No. of Strings MPP Tracker | 1/1 | 2/1+1 | 2/2+1 | |||
| AC Output Data | ||||||
| Rated AC Output Power (VA/W) | 3000 | 3600 | 5000 | 6600 | 8800 | |
| Max. AC Output Power (VA/W) | 3000 | 3600 | 5000 | 6600 | 8800 | |
| Max. AC Output Current (A) | 13.1 | 15.7 | 21.8 | 28.7 | 38.3 | |
| Rated AC Output Current (A) | 13.1 | 15.7 | 21.8 | 28.7 | 38.3 | |
| Peak Power (W） | 2 times of rated power, 10s | |||||
| Rated Output Voltage (V) | 230 L+N+PE | |||||
| Rated Output Frequency | 50Hz / 60Hz | |||||
| Output Voltage Waveform | Pure Sine Wave | |||||
| Total Current Harmonic Distortion THDi | ＜3% | |||||
| AC Input Date(Grid and Generator) | ||||||
| Max. Input Power to Battery (W) | 3000 | 3600 | 5000 | 6600 | 8800 | |
| Rated Input Voltage (V） | 230 | |||||
| Rated Input Frequency | 50Hz / 60Hz | |||||
| Gird Input Current (A) | 35 | 50 | ||||
| Generator Input Current (A) | 35 | 50 | ||||
| Efficiency | ||||||
| Max. Efficiency | 97.6% | |||||
| Euro Efficiency | 96.5% | |||||
| MPPT Efficiency | >99% | |||||
| Equipment Protection | ||||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Insulation Impedance Detection | |||||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | |||||
| Interface | ||||||
| LCD/LED Display | LCD | |||||
| Communication Interface | Wi-Fi&BT,RS485,CAN | |||||
| General Data | ||||||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | |||||
| Permissible Ambient Humidity | 0-100% | |||||
| Permissible Altitude | 3000m | |||||
| Noise (dB) | <46 | |||||
| Ingress Protection(IP) Rating | IP 65 | |||||
| Inverter Topology | Non-Isolated (solar), Isolated (battery) | |||||
| Over Voltage Category | OVC II(DC), OVC III(AC) | |||||
| Cabinet Size (WxHxD mm) | 323×424×176 (Excluding Connectors and Brackets) | |||||
| Weight (kg） | 8.6 | |||||
| Type of Cooling | Intelligent Air Cooling | |||||
| Warranty | 5 Years | |||||
| Safety / EMC Standard | IEC62109-1/2, EN61000-6-1, EN61000-6-2 , EN61000-6-3, EN61000-6-4 | |||||
