Deye · Onduleur de chaîne

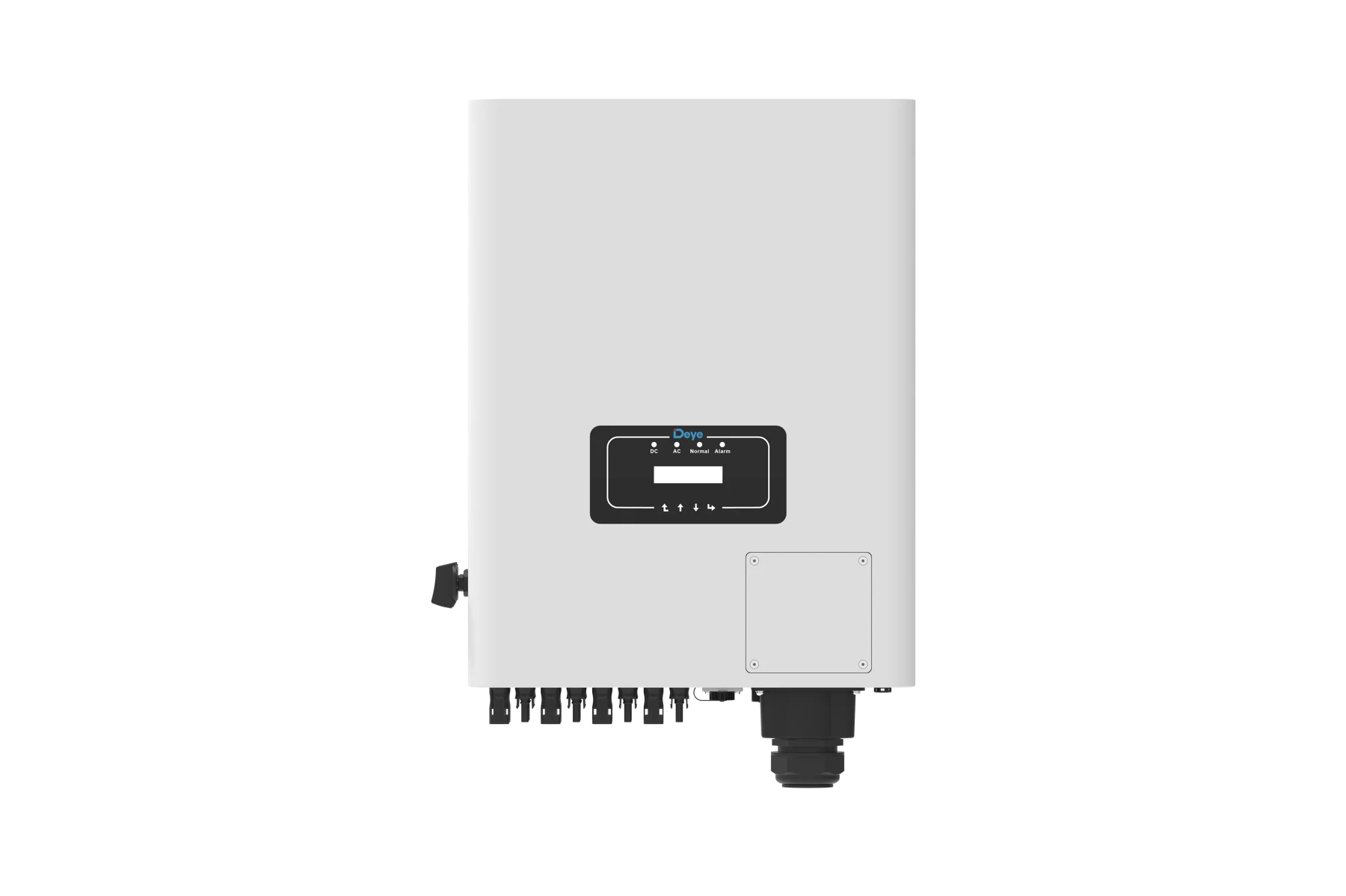

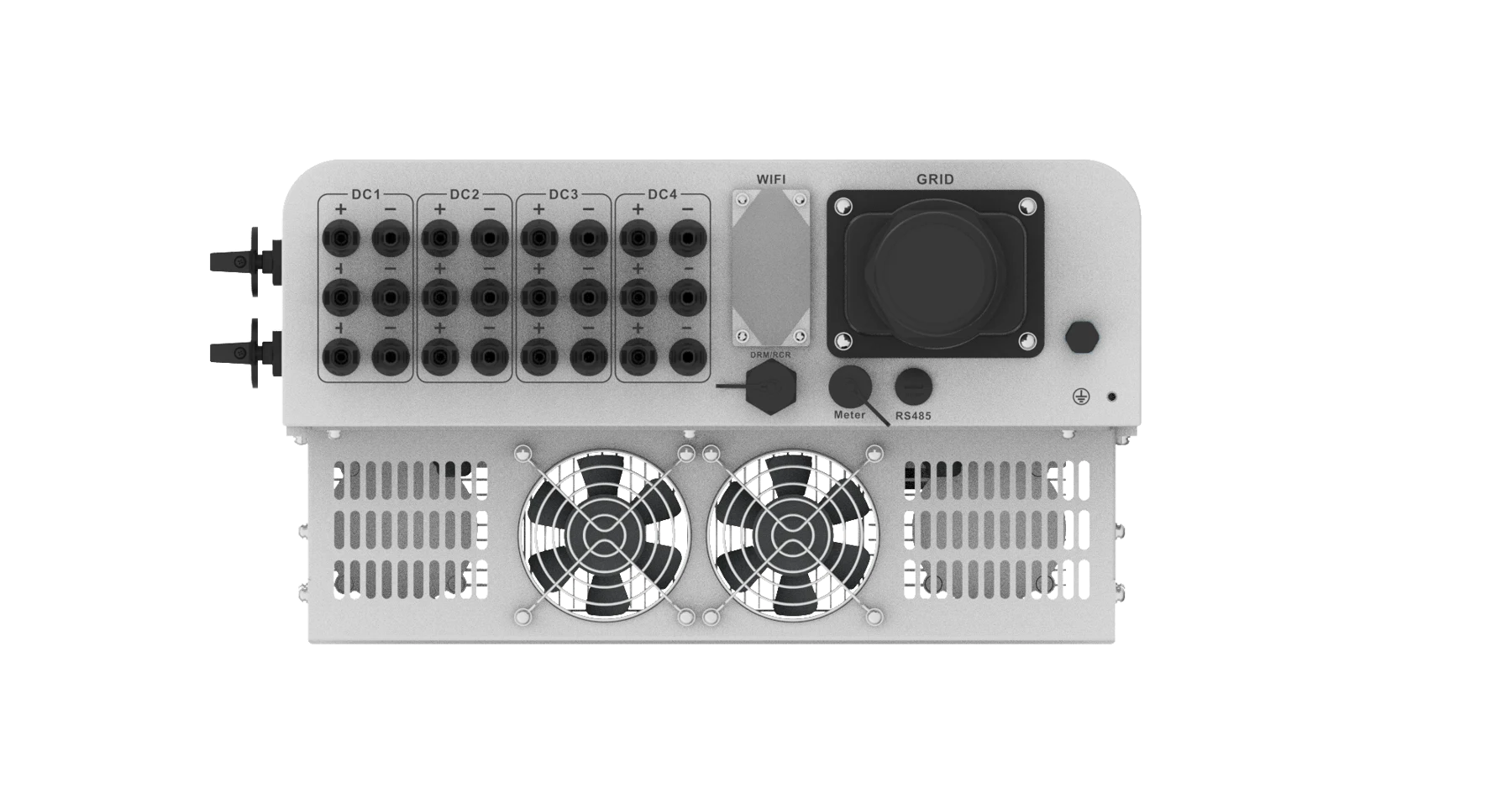

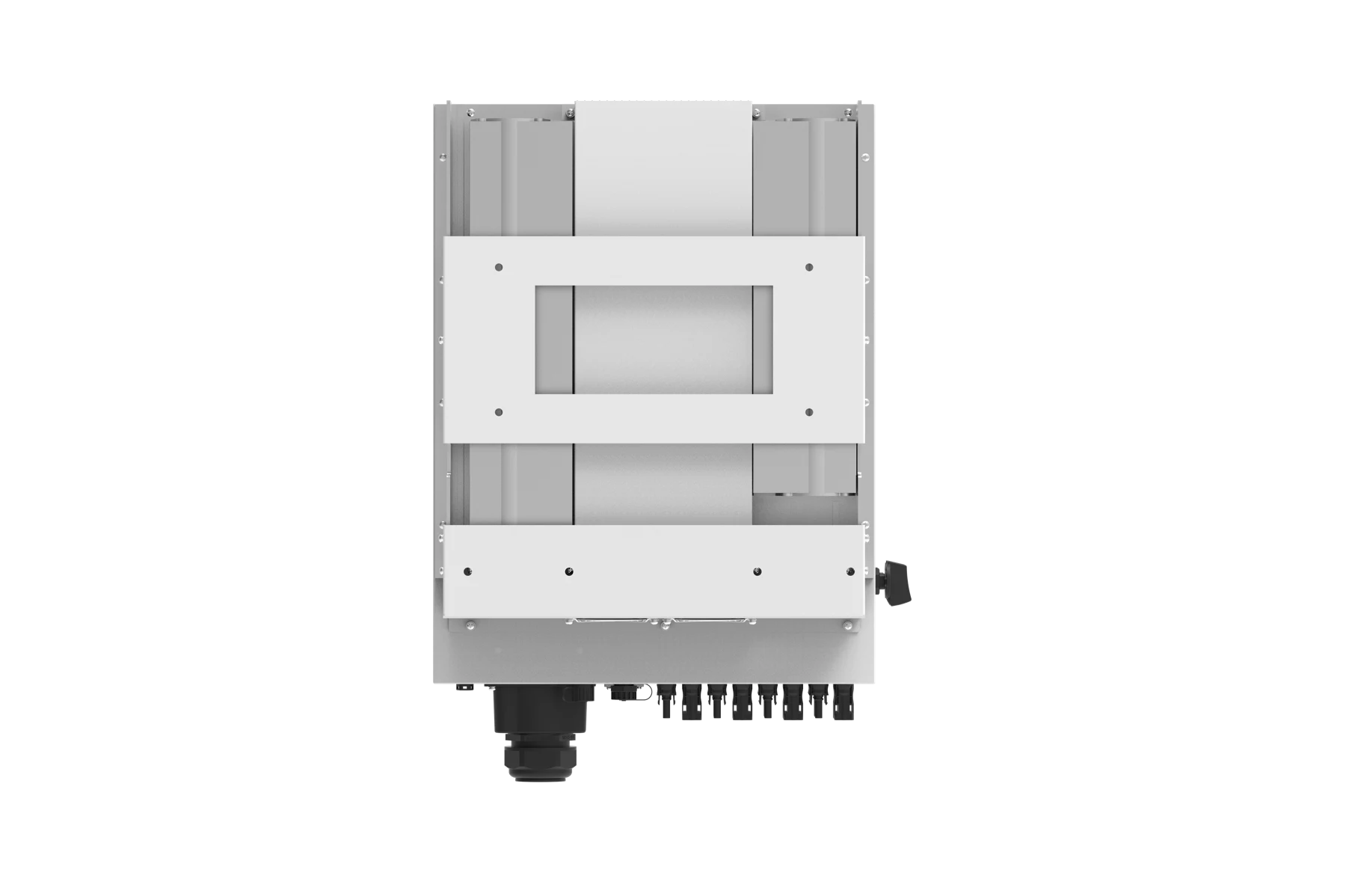

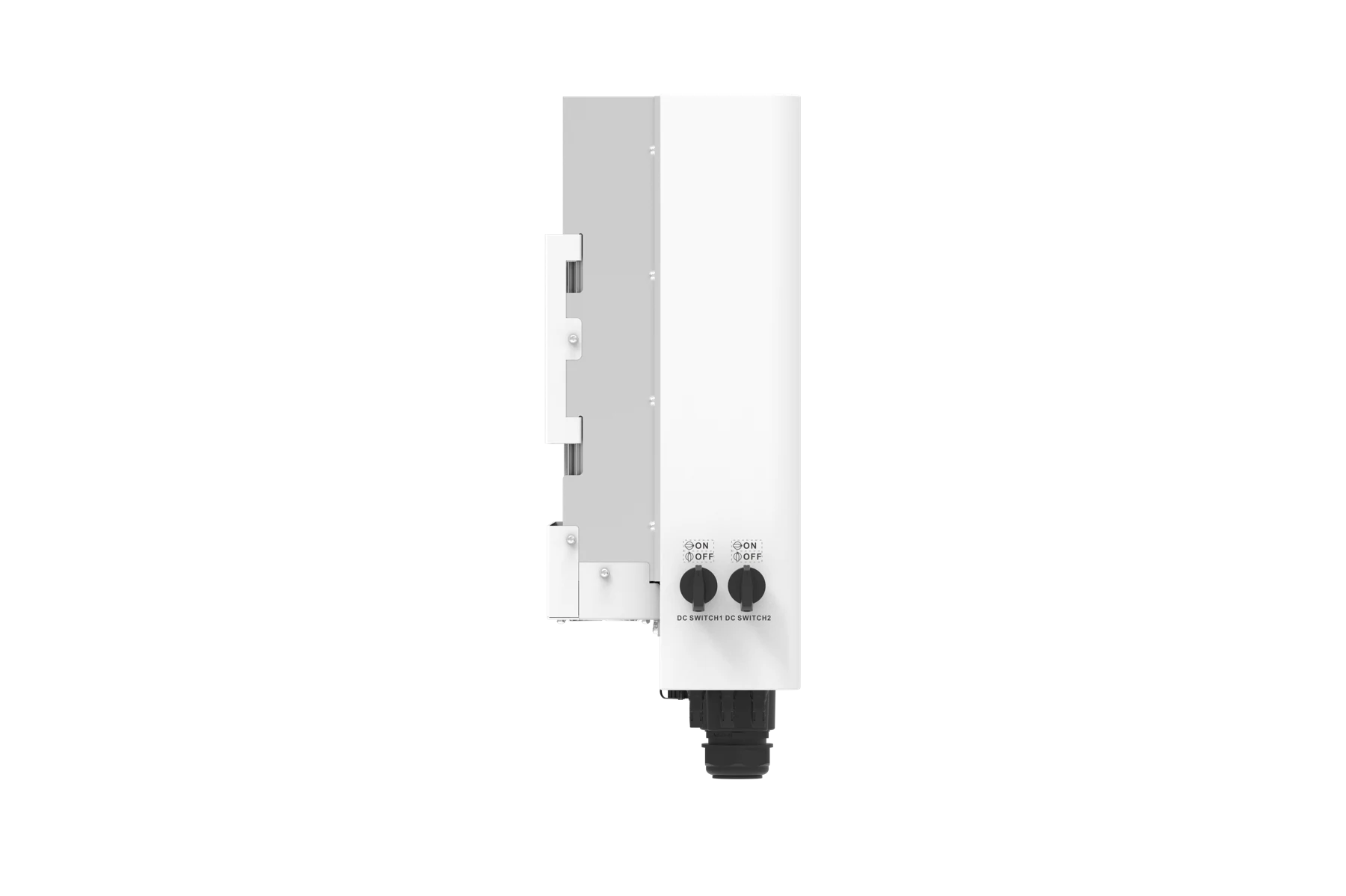

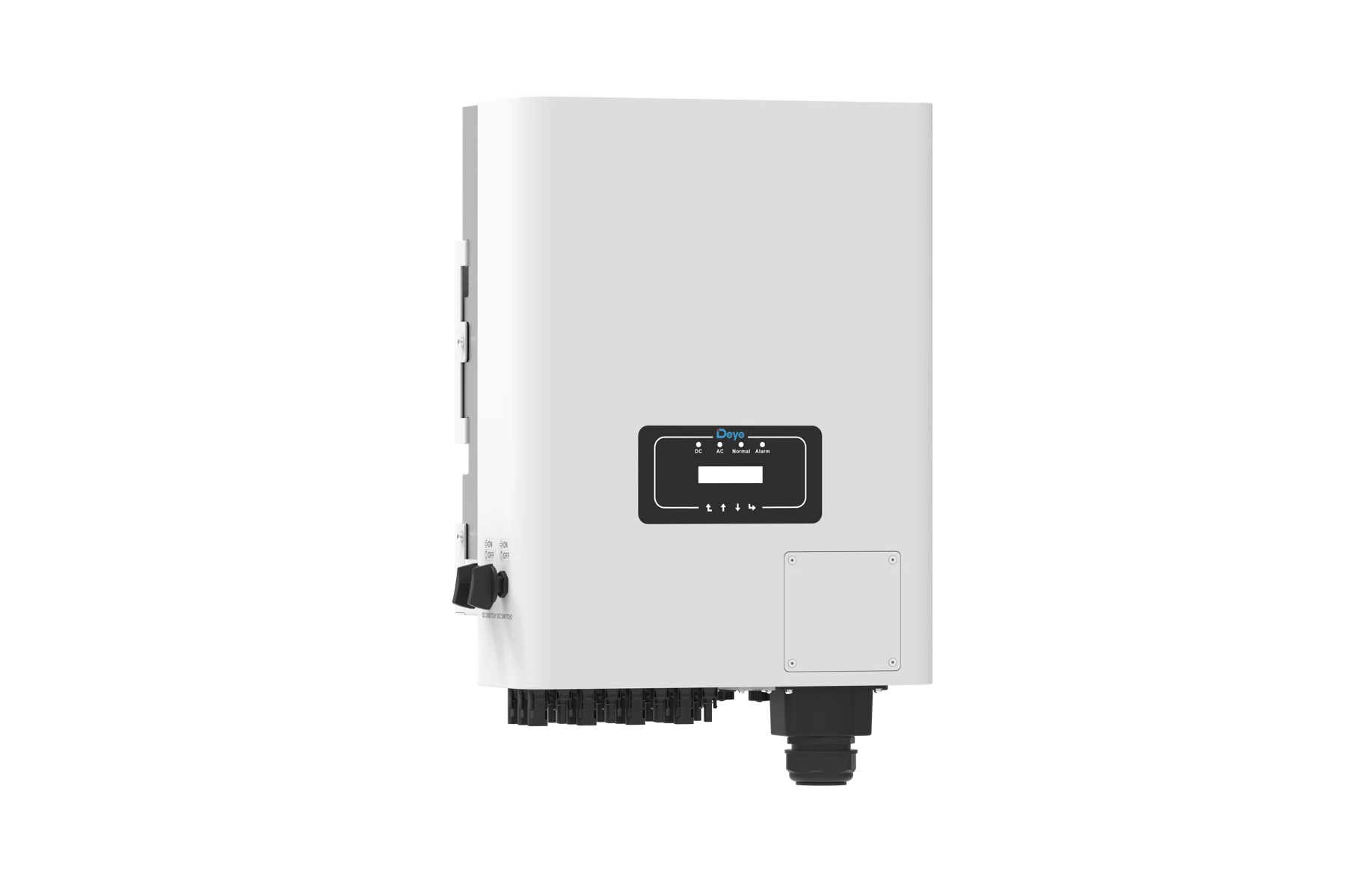

Deye SUN-40/45/50K-G04
Three Phase | 40-50kW | 4 MPPT
Classement par série officielle. Les puissances, versions régionales et interfaces ne sont pas interchangeables. Les tableaux anglais conservent les colonnes et cellules fusionnées. Confirmez modèle, certification, disponibilité, transport et délai. Prix sur demande.
Deye · 2026-10-20
Caractéristiques du produit
- Max. 4 MPP trackers, Max. effificiency up to 98.7%
- Zero export application, VSG application
- String intelligent monitoring (optional)
- Wide output voltage range
- Anti-PID function (Optional)
Caractéristiques techniques officielles
Classement par série officielle. Les puissances, versions régionales et interfaces ne sont pas interchangeables. Les tableaux anglais conservent les colonnes et cellules fusionnées. Confirmez modèle, certification, disponibilité, transport et délai. Prix sur demande.
| Model | SUN-40K-G04 | SUN-45K-G04 | SUN-50K-G04 |
|---|---|---|---|
| PV String Input Date | |||
| Max. PV Input Power(kW) | 52 | 58.5 | 65 |
| Max. PV Input Voltage(V) | 1100 | ||
| Start-up Voltage(V) | 250 | ||
| MPPT voltage range(V) | 200-1000 | ||
| Rated PV Input voltage(V) | 600 | ||
| Max. Input Short Circuit Current (A) | 60+60+60 | 60+60+60+60 | |
| Max. Operating PV Input Current(A) | 40+40+40 | 40+40+40+40 | |
| No. of MPPT Trackers/No. of Strings per MPPT Trackers | 3/3+3+3 | 4/3+3+3+3 | |
| AC Output Side | |||
| Rated AC Output Active Power(kW) | 40 | 45 | 50 |
| Max. AC Output Apparent Power(kVA) | 44 | 49.5 | 55 |
| Rated AC output current (A) | 60.6/58 | 68.2/65.2 | 75.8/72.5 |
| Max. AC IOutput Current(A) | 66.7/63.8 | 75/71.7 | 83.3/79.7 |
| Rated output voltage/range (V) | 220/380V, 230/400V 0.85Un-1.1Un | ||
| Grid Connection Form | 3L/N/PE | ||
| Rated Output Grid Frequency/range(Hz) | 50/45-55, 60/55-65 | ||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||
| Total Current Harmonic Distortion THDi | <3% | ||
| DC Injection Current | <0.5%ln | ||
| Efficiency | |||
| Max. Efficiency | 98.70% | ||
| Euro Efficiency | 98.10% | ||
| MPPT Efficiency | ＞99% | ||
| Equipment Protection | |||
| DC Reverse Polarity Protection | Yes | ||
| AC Output Overcurrent Protection | Yes | ||
| AC Output Overvoltage Protection | Yes | ||
| AC Output Short Circuit Protection | Yes | ||
| Thermal Protection | Yes | ||
| Insulation Impedance Detection | Yes | ||
| DC Component Monitoring | Yes | ||
| Arc Fault Circuit Interrupter (AFCI) | Optional | ||
| Anti-islanding Protection | Yes | ||
| Residual Current Detection | Yes | ||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||
| DC Switch | Yes | ||
| Interface | |||
| Communication Interface | RS485/RS232 | ||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||
| General Data | |||
| Operating Temperature Range (°C) | -25 to +60℃, >45℃ Derating | ||
| Permissible Ambient Humidity | 0~100% | ||
| Permissible Altitude (m) | 4000m | ||
| Noise (dB) | <65 | ||
| Ingress Protection(IP) Rating | IP 65 | ||
| Inverter Topology | Non-Isolated | ||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||
| Cabinet Size (WxHxD mm) | 434×570×243 (Excluding Connectors and Brackets) | ||
| Weight [kg] | 39 | ||
| Warranty [year] | 5 Years | ||
| Type Of Cooling | Intelligent Air Cooling | ||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | ||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
