Deye · 混合逆变器

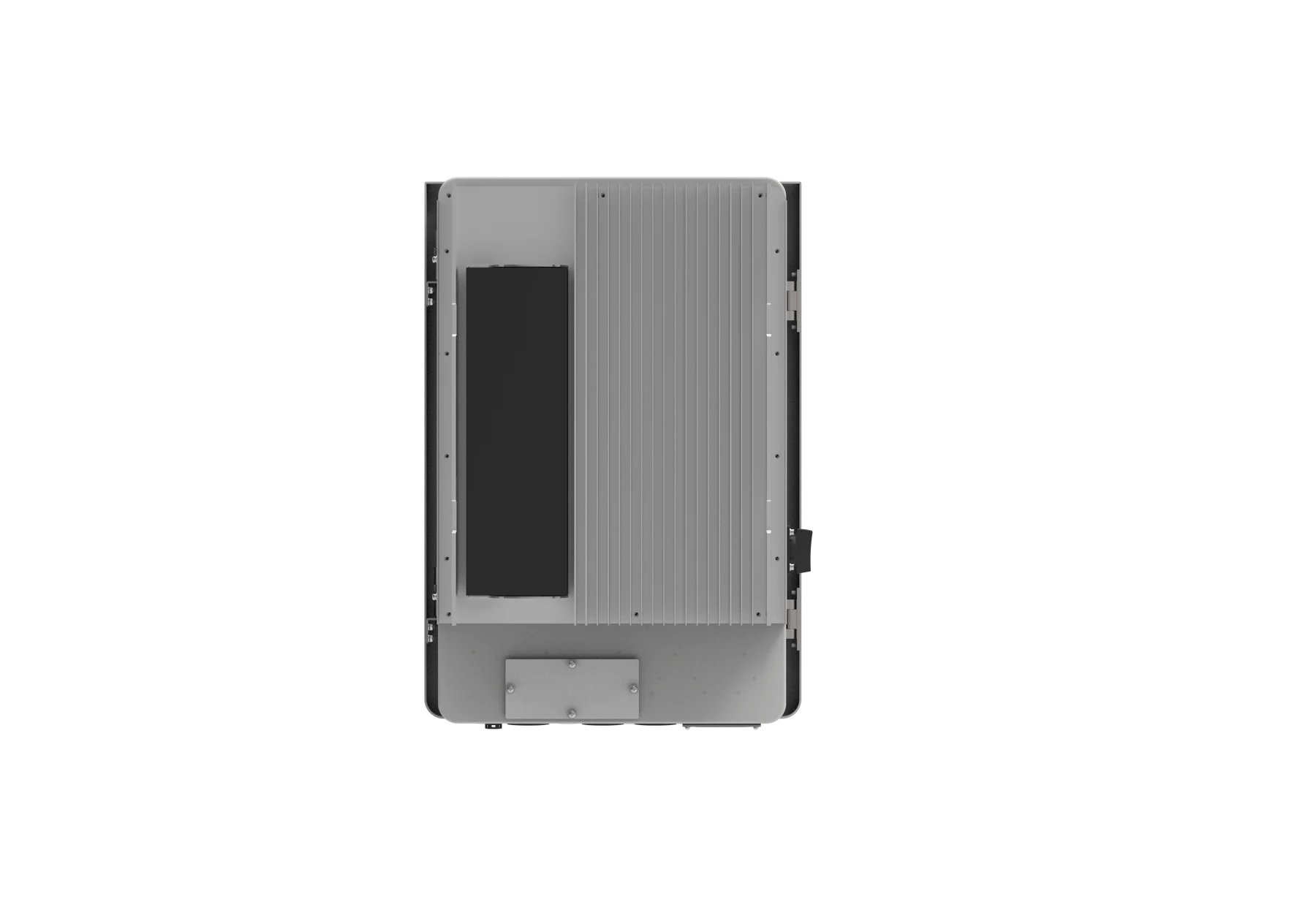

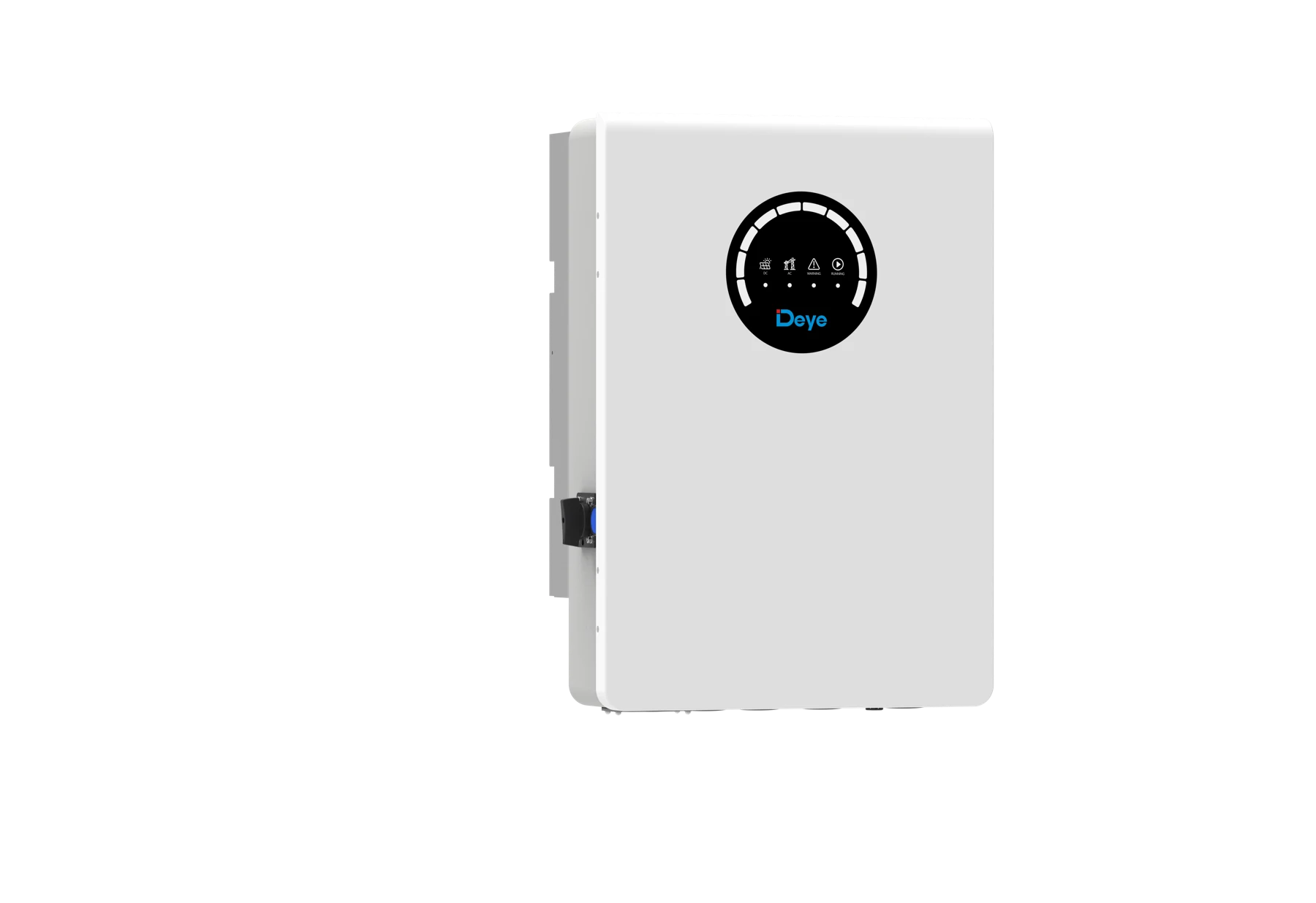

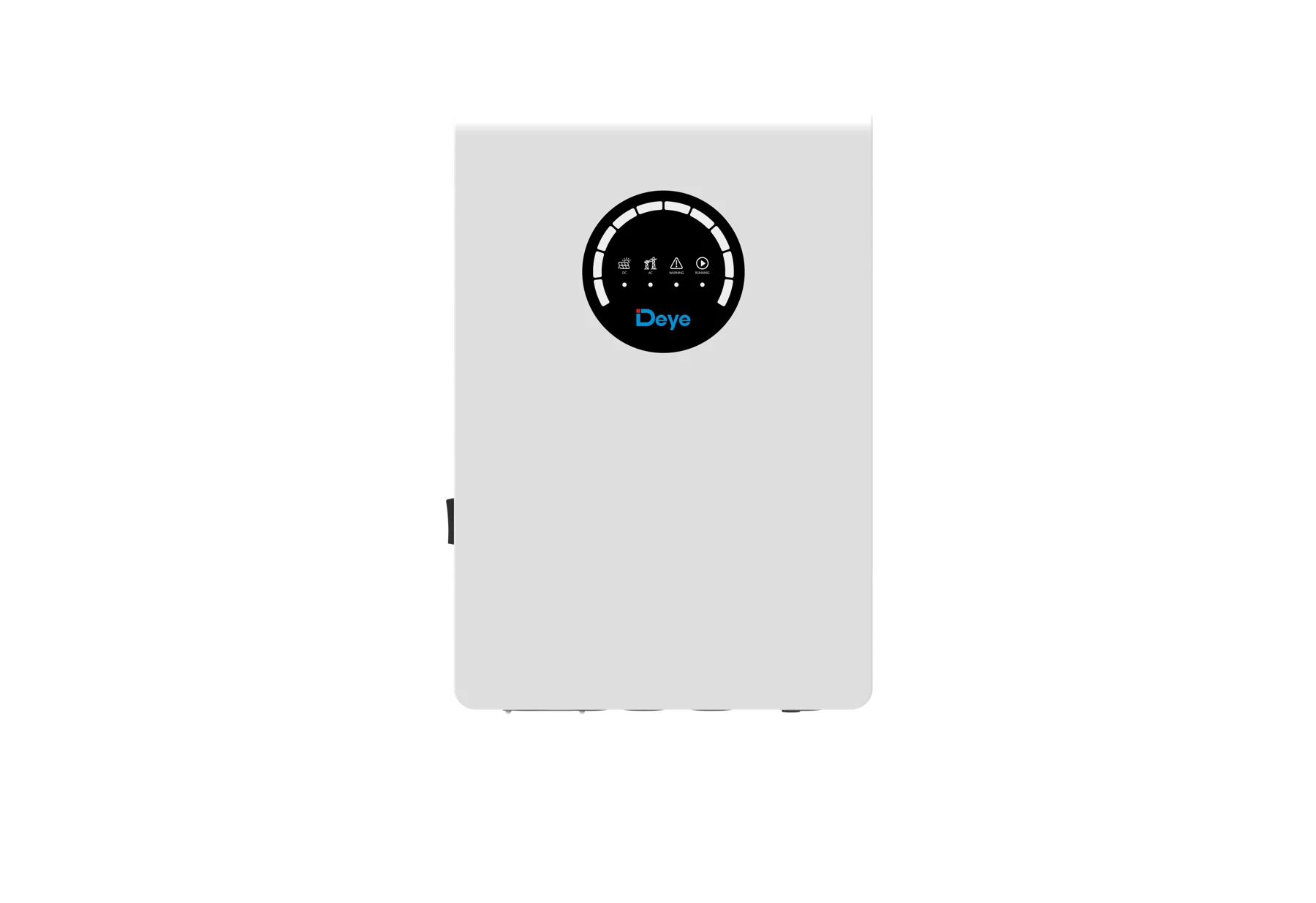

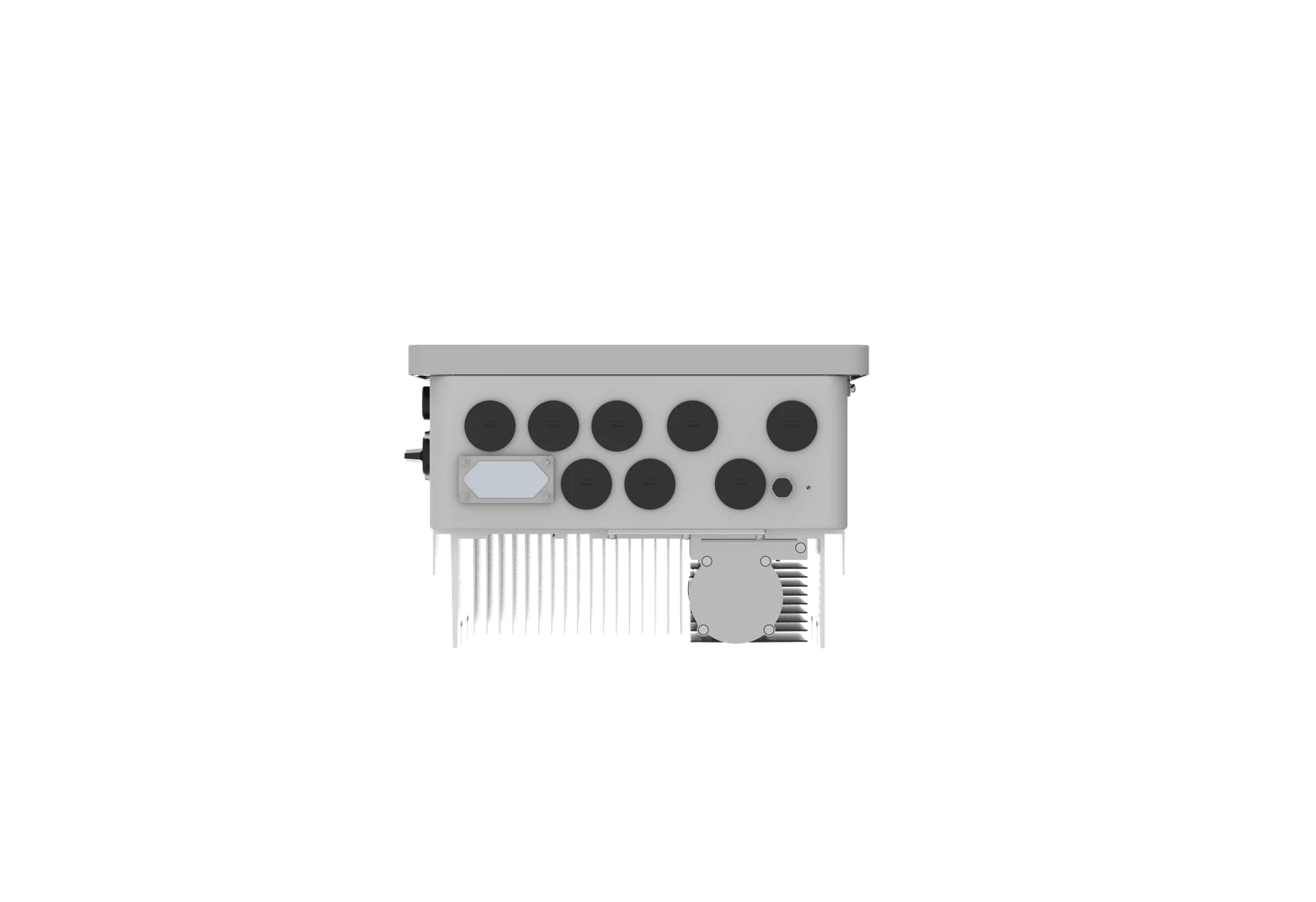

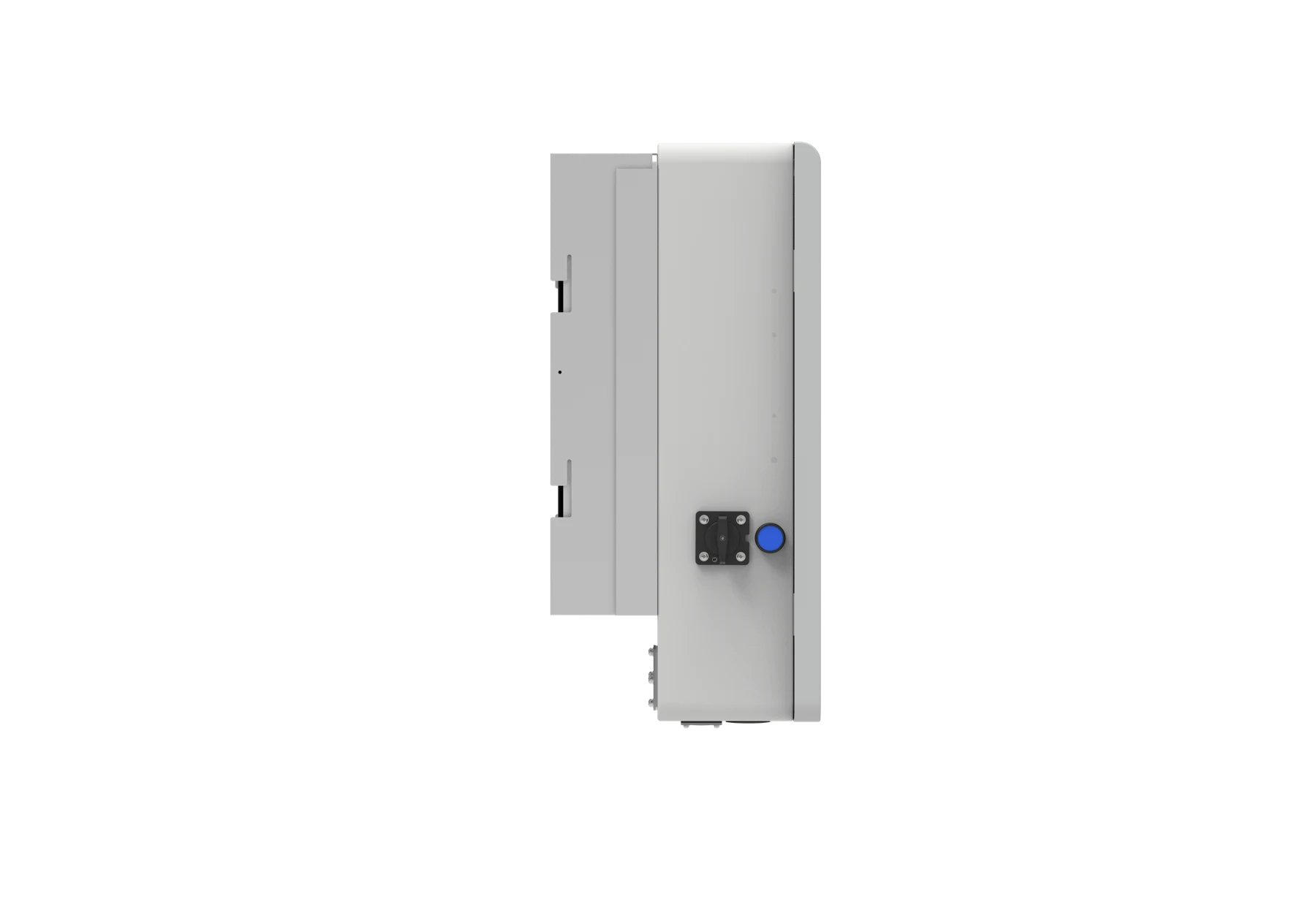

Deye SUN-4.95/5.5/8K-SG02HP2-JP-FM4
Single Phase Hybrid Inverter | 4.95-8kW | 4 MPPT | HV Battery Supported
按官网系列页面整理；同一系列不同功率、区域和接口版本不能互换参数。官方英文原表保留型号列与合并单元格，采购前请确认具体型号、认证、供货、运费和交期。未标价产品请询价。
Deye · 2026-10-20
官方产品特点
- Equipped with stand-alone operation and grid-connected operation functions
- Anti-reverse power flow function measures
- Supports 101V/202V loads
- Supports single-function and full-load operation
官方技术参数对照
按官网系列页面整理；同一系列不同功率、区域和接口版本不能互换参数。官方英文原表保留型号列与合并单元格，采购前请确认具体型号、认证、供货、运费和交期。未标价产品请询价。
| Model | SUN-4.95K-SG02HP2-JP-FM4 | SUN-5.5K-SG02HP2-JP-FM4 | SUN-8K-SG02HP2-JP-FM4 |
|---|---|---|---|
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range (V) | 80-500 | ||
| Max. Charging Current (A) | 50 | ||
| Max. Discharging Current (A) | 50 | ||
| Battery Charging Method | Self-adaptation to BMS | ||
| Number of Battery Inputs | 1 | ||
| PV Input Data | |||
| Max. DC Allowable Connected Power (W) | 10000 | 11000 | 16000 |
| Max. DC Input Power (W) | 8000 | 8800 | 12600 |
| Max. DC Input Voltage (V) | 500 | ||
| Start-up Voltage (V) | 70 | ||
| MPPT Voltage Range (V) | 50-450 | ||
| Rated DC Input Voltage (V) | 350 | ||
| Full Load MPPT Voltage Range (V) | 250-450 | ||
| Max. Input Short Circuit Current (A) | 30+30+30+30 | ||
| PV Input Current (A) | 20+20+20+20 | ||
| Number of MPPT Circuits Number of Strings per MPPT | 4/1+1+1+1 | ||
| AC Output Data | |||
| Rated AC Output Active Power (W) | 4950 | 5500 | 8000 |
| Max. AC Output Apparent Power (VA) | 5440 | 6050 | 8800 |
| Rated AC Output Current (A) | 24.6 | 27.3 | 39.7 |
| Max. AC Output Current (A) | 27 | 30 | 43.6 |
| Max. Continuous AC Bus Pass-Through Current (Grid to Load) (A) | 80 | ||
| Peak Power (Off-Grid) (W) | 1.5times of rated power,10s | ||
| Power Factor Adjustment Range | 0.8 leading – 0.8 lagging | ||
| Rated Output Voltage / Range (V) | 101/202V, 0.85Un - 1.1Un | ||
| Rated Frequency / Range | 50Hz / 45Hz-55Hz, 60Hz / 55Hz-65Hz | ||
| Electrical System | Split Phase three-wire (supports 101V and 202V) | ||
| Current Harmonic Distortion (THDi) | <3% | ||
| Grid DC Component | <0.5% In | ||
| Protection Functions | |||
| Integrated | Integrated DC reverse polarity protection, AC output overcurrent protection, overheat protection, AC output overvoltage protection, AC output short circuit protection, DC component detection, overvoltage load reduction protection, ground fault current detection, arc fault circuit interrupter (optional), power system monitoring and control, islanding detection, ground fault detection, DC input switch, DC terminal insulation resistance detection, residual current (RCD) detection, surge protection | ||
| General Data | |||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | ||
| Allowable Humidity | 0~100% (no condensation, no icing) | ||
| Altitude | 3000m | ||
| Noise (dB) | ≤50 | ||
| Dust and Water Protection Rating | IP 65 | ||
| Inverter Topology | Non-isolated | ||
| Overvoltage Category | OVC II (DC), OVC II (AC) | ||
| Surge Protection Level | TYPE III | ||
| Dimensions (W×H×D) [mm] | 423 * 570 * 256.5 (excluding connectors and bracket) | ||
| Weight (kg) | 32 | ||
| Warranty Period | Standard warranty 10 years, extended warranty available | ||
| Cooling Method | Natural air cooling | ||
| Certification | S-JET | ||
