Deye · 组串并网逆变器

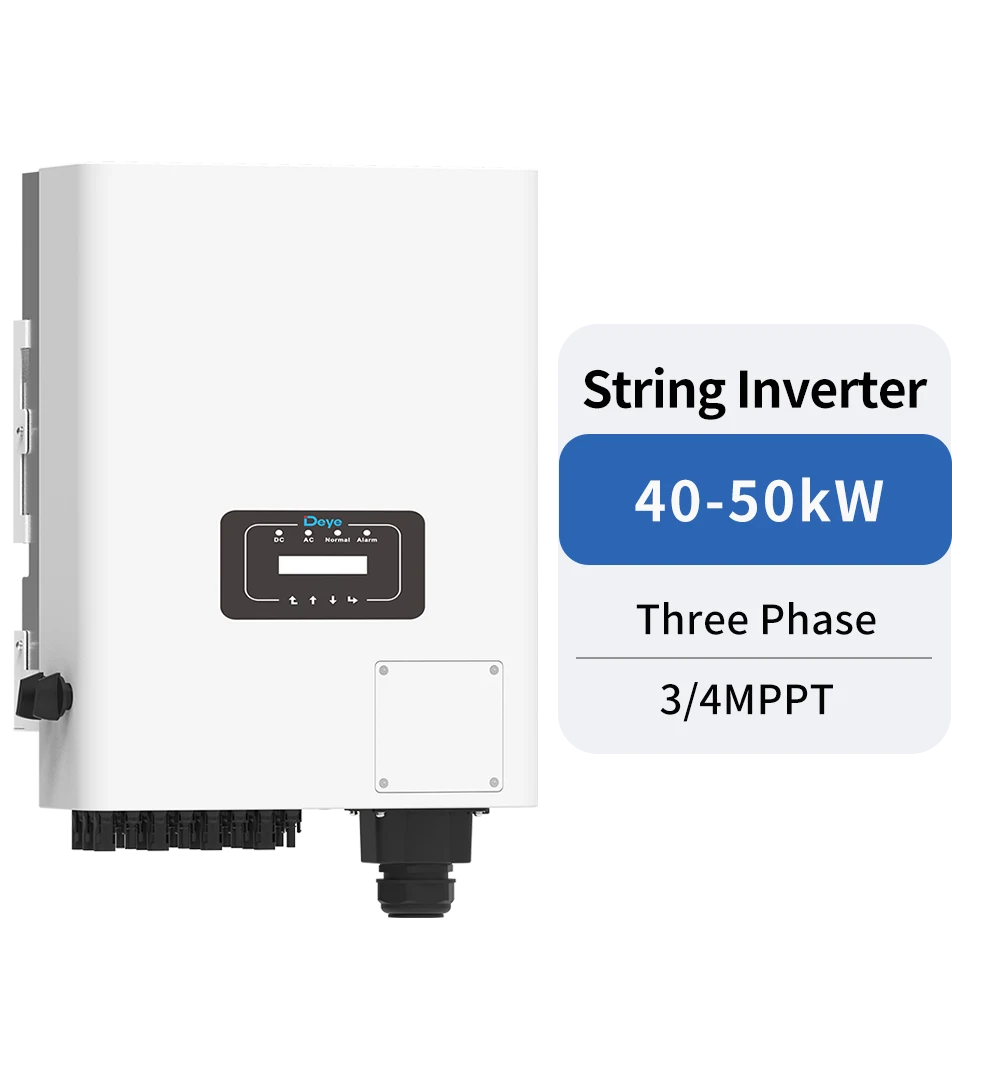

Deye SUN-40/45/50K-G04
Three Phase | 40-50kW | 4 MPPT
按官网系列页面整理；同一系列不同功率、区域和接口版本不能互换参数。官方英文原表保留型号列与合并单元格，采购前请确认具体型号、认证、供货、运费和交期。未标价产品请询价。
Deye · 2026-10-20
官方产品特点
- Max. 4 MPP trackers, Max. effificiency up to 98.7%
- Zero export application, VSG application
- String intelligent monitoring (optional)
- Wide output voltage range
- Anti-PID function (Optional)
官方技术参数对照
按官网系列页面整理；同一系列不同功率、区域和接口版本不能互换参数。官方英文原表保留型号列与合并单元格，采购前请确认具体型号、认证、供货、运费和交期。未标价产品请询价。
| Model | SUN-40K-G04 | SUN-45K-G04 | SUN-50K-G04 |
|---|---|---|---|
| PV String Input Date | |||
| Max. PV Input Power(kW) | 52 | 58.5 | 65 |
| Max. PV Input Voltage(V) | 1100 | ||
| Start-up Voltage(V) | 250 | ||
| MPPT voltage range(V) | 200-1000 | ||
| Rated PV Input voltage(V) | 600 | ||
| Max. Input Short Circuit Current (A) | 60+60+60 | 60+60+60+60 | |
| Max. Operating PV Input Current(A) | 40+40+40 | 40+40+40+40 | |
| No. of MPPT Trackers/No. of Strings per MPPT Trackers | 3/3+3+3 | 4/3+3+3+3 | |
| AC Output Side | |||
| Rated AC Output Active Power(kW) | 40 | 45 | 50 |
| Max. AC Output Apparent Power(kVA) | 44 | 49.5 | 55 |
| Rated AC output current (A) | 60.6/58 | 68.2/65.2 | 75.8/72.5 |
| Max. AC IOutput Current(A) | 66.7/63.8 | 75/71.7 | 83.3/79.7 |
| Rated output voltage/range (V) | 220/380V, 230/400V 0.85Un-1.1Un | ||
| Grid Connection Form | 3L/N/PE | ||
| Rated Output Grid Frequency/range(Hz) | 50/45-55, 60/55-65 | ||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||
| Total Current Harmonic Distortion THDi | <3% | ||
| DC Injection Current | <0.5%ln | ||
| Efficiency | |||
| Max. Efficiency | 98.70% | ||
| Euro Efficiency | 98.10% | ||
| MPPT Efficiency | ＞99% | ||
| Equipment Protection | |||
| DC Reverse Polarity Protection | Yes | ||
| AC Output Overcurrent Protection | Yes | ||
| AC Output Overvoltage Protection | Yes | ||
| AC Output Short Circuit Protection | Yes | ||
| Thermal Protection | Yes | ||
| Insulation Impedance Detection | Yes | ||
| DC Component Monitoring | Yes | ||
| Arc Fault Circuit Interrupter (AFCI) | Optional | ||
| Anti-islanding Protection | Yes | ||
| Residual Current Detection | Yes | ||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||
| DC Switch | Yes | ||
| Interface | |||
| Communication Interface | RS485/RS232 | ||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||
| General Data | |||
| Operating Temperature Range (°C) | -25 to +60℃, >45℃ Derating | ||
| Permissible Ambient Humidity | 0~100% | ||
| Permissible Altitude (m) | 4000m | ||
| Noise (dB) | <65 | ||
| Ingress Protection(IP) Rating | IP 65 | ||
| Inverter Topology | Non-Isolated | ||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||
| Cabinet Size (WxHxD mm) | 434×570×243 (Excluding Connectors and Brackets) | ||
| Weight [kg] | 39 | ||
| Warranty [year] | 5 Years | ||
| Type Of Cooling | Intelligent Air Cooling | ||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | ||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
规格书与官方资料
Download DatasheetDownload Manual 1certificate_cqc+nbt32004-2018-2certificate_emc+eniec61000-3certificate_en62109-3certificate_iec62109-3certificate_southafrica+nrs-097eudeclaration-sun-40-50k-g04+231016005certificate_iec61727+iec62116+iec61683+iec60068certificatetuvmark+en62109certificatelvd+en62109certificatefrance_en50549-10certificateen50549-10certificateemc+eniec61000certificatedubai
