Deye SUN-7.6/8/10/12K-SG02LP1-EU-AM2/AM3
Single Phase Hybrid Inverter | 7.6-12kW | 2/3 MPPT | LV Battery Supported
按官网系列页面整理；同一系列不同功率、区域和接口版本不能互换参数。官方英文原表保留型号列与合并单元格，采购前请确认具体型号、认证、供货、运费和交期。未标价产品请询价。
Deye · 2026-10-20
官方产品特点

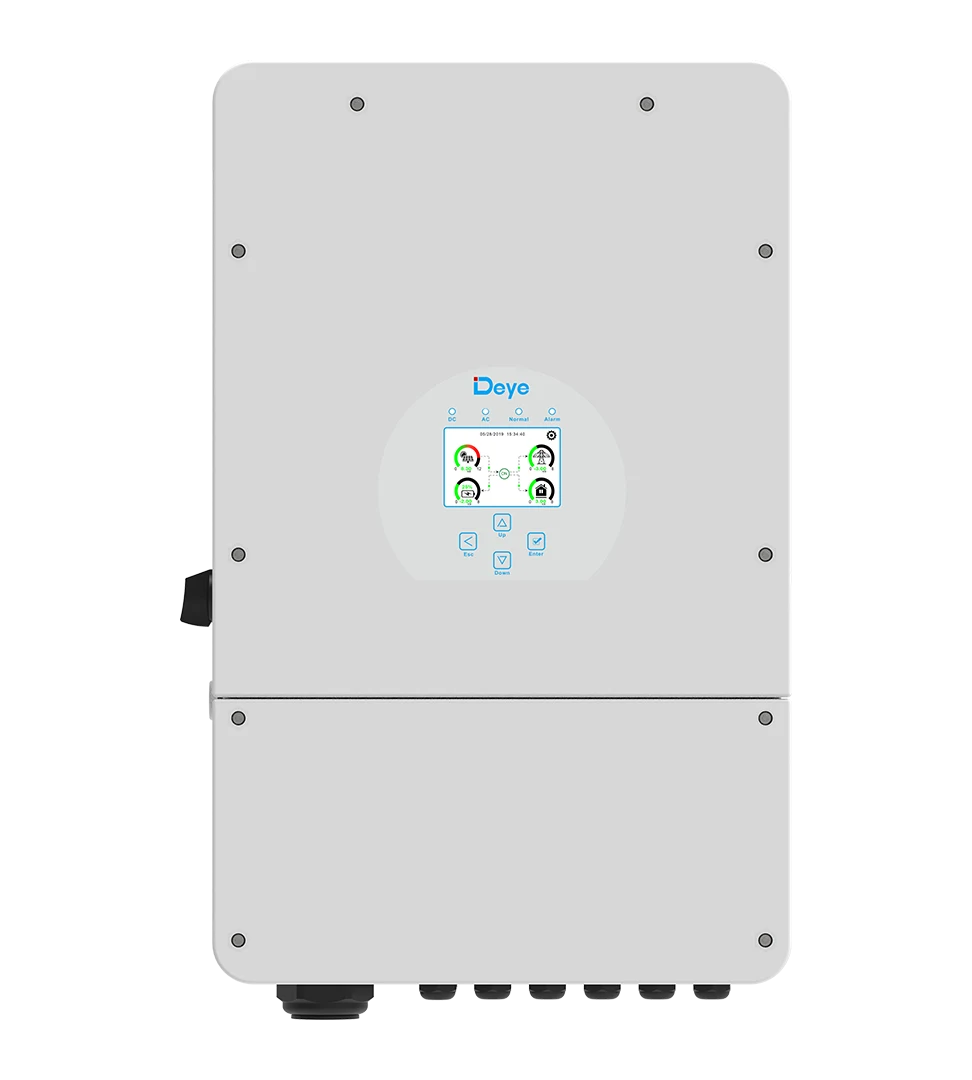

- Colorful touch LCD, IP65 protection degree
- AC couple to retrofit existing solar system
- Max. 16 pcs parallel for on-grid and off-grid operation; support multiple batteries parallel
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 250A
- Support storing energy from diesel generator
官方技术参数对照
按官网系列页面整理；同一系列不同功率、区域和接口版本不能互换参数。官方英文原表保留型号列与合并单元格，采购前请确认具体型号、认证、供货、运费和交期。未标价产品请询价。
| Model | SUN-7.6K-SG02LP1-EU-AM2 | SUN-8K-SG02LP1-EU-AM2 | SUN-10K-SG02LP1-EU-AM3 | SUN-12K-SG02LP1-EU-AM3 |
|---|---|---|---|---|
| Battery Input Data | ||||
| Battery Type | Lead-acid or Lithium-ion | |||
| Battery Voltage Range(V) | 40-60 | |||
| Max. Charging/Discharging Current(A) | 190 | 190 | 220 | 250 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||
| Number of Battery Input | 1 | |||
| PV String Input Data | ||||
| Max. PV Access Power (W) | 15200 | 16000 | 20000 | 24000 |
| Max. PV Input Power（W） | 12160 | 12800 | 16000 | 19200 |
| Max. PV Input Voltage（V） | 500 | |||
| Start-up Voltage（V） | 125 | |||
| MPPT Voltage Range（V） | 150-425 | |||
| Rated PV Input Voltage(V) | 370 | |||
| Max. Operating PV Input Current (A) | 26+26 | 26+26+26 | ||
| Max. Input Short-Circuit Current (A) | 44+44 | 44+44+44 | ||
| No.of MPP Trackers/No.of Strings MPP Tracker | 2/2+2 | 3/2+2+2 | ||
| AC Input/Output Data | ||||
| Rated AC Input/Output Active Power（W） | 7600 | 8000 | 10000 | 12000 |
| Max. AC Input/Output Apparent Power （VA） | 8360 | 8800 | 11000 | 13200 |
| Rated AC Input/Output Current（A） | 34.6/33.1 | 36.4/34.8 | 45.5/43.5 | 54.6/52.2 |
| Max. AC Input/Output Current（A） | 38/36.4 | 40/38.3 | 50/47.9 | 60/57.4 |
| Max. Continuous AC Passthrough (grid to load)（A） | 50 | 60 | ||
| Peak Power (off-grid)（W） | 2 times of rated power,10s | |||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||
| Rated Input/Output Voltage | 220/230V 0.85Un-1.1Un L+N+PE | |||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | |||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||
| DC Injection Current | <0.5%ln | |||
| Efficiency | ||||
| Max. Efficiency | 97.6% | |||
| Euro Efficiency | 96.5% | |||
| MPPT Efficiency | ＞99% | |||
| Equipment Protection | ||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault CircuitInterrupter (AFCI) (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | |||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | |||
| Interface | ||||
| LCD/LED Display | LCD | |||

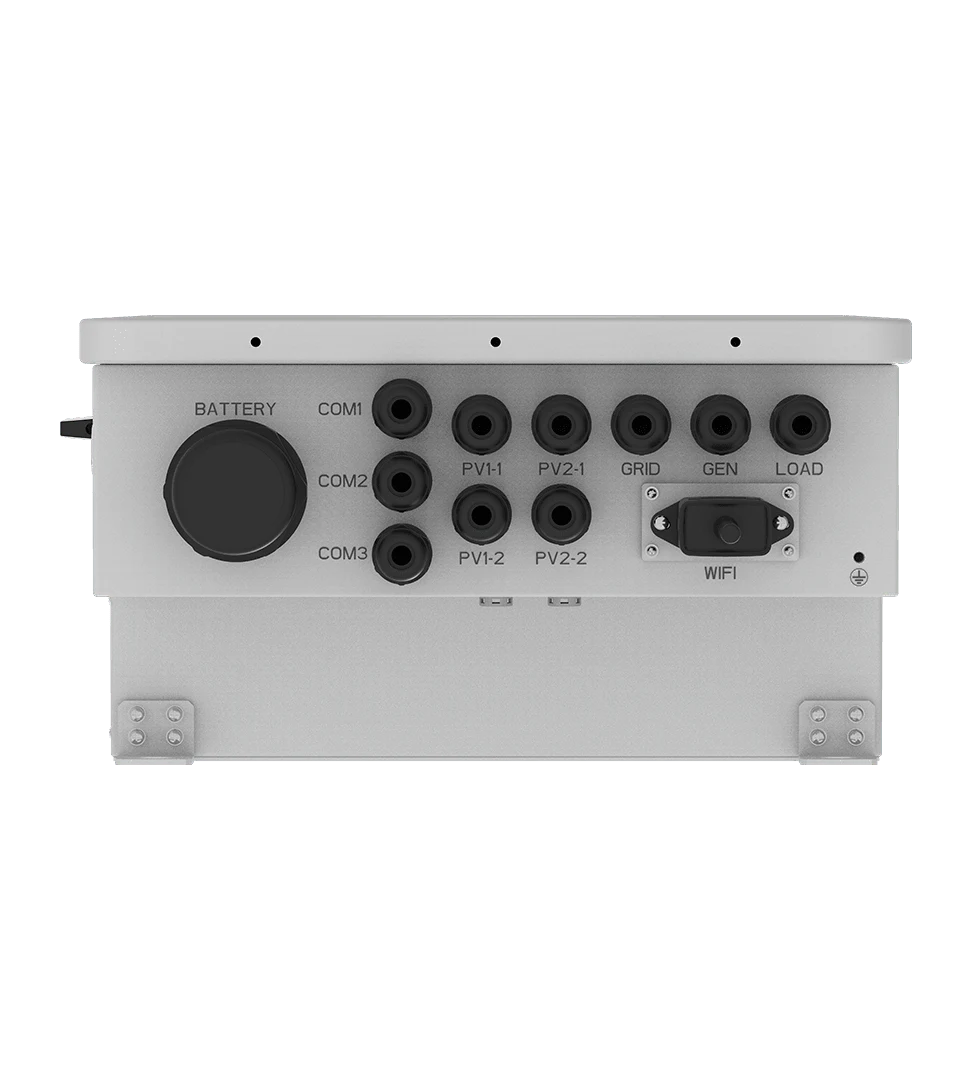

| Communication Interface | WIFI, RS485, CAN | |||
| General Data | ||||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | |||
| Permissible Ambient Humidity | 0~100% | |||
| Permissible Altitude | 2000m | |||
| Noise(dB) | ＜45 | |||
| Ingress Protection(IP) Rating | IP 65 | |||
| Inverter Topology | Non-Isolated (solar), Isolated (battery) | |||
| Over Voltage Category | OVC II(DC), OVC III(AC) | |||
| Cabinet size(WxHxD mm) | 420×670×233 (Excluding Connectors and Brackets) | |||
| Weight(kg) | 35.6 | |||

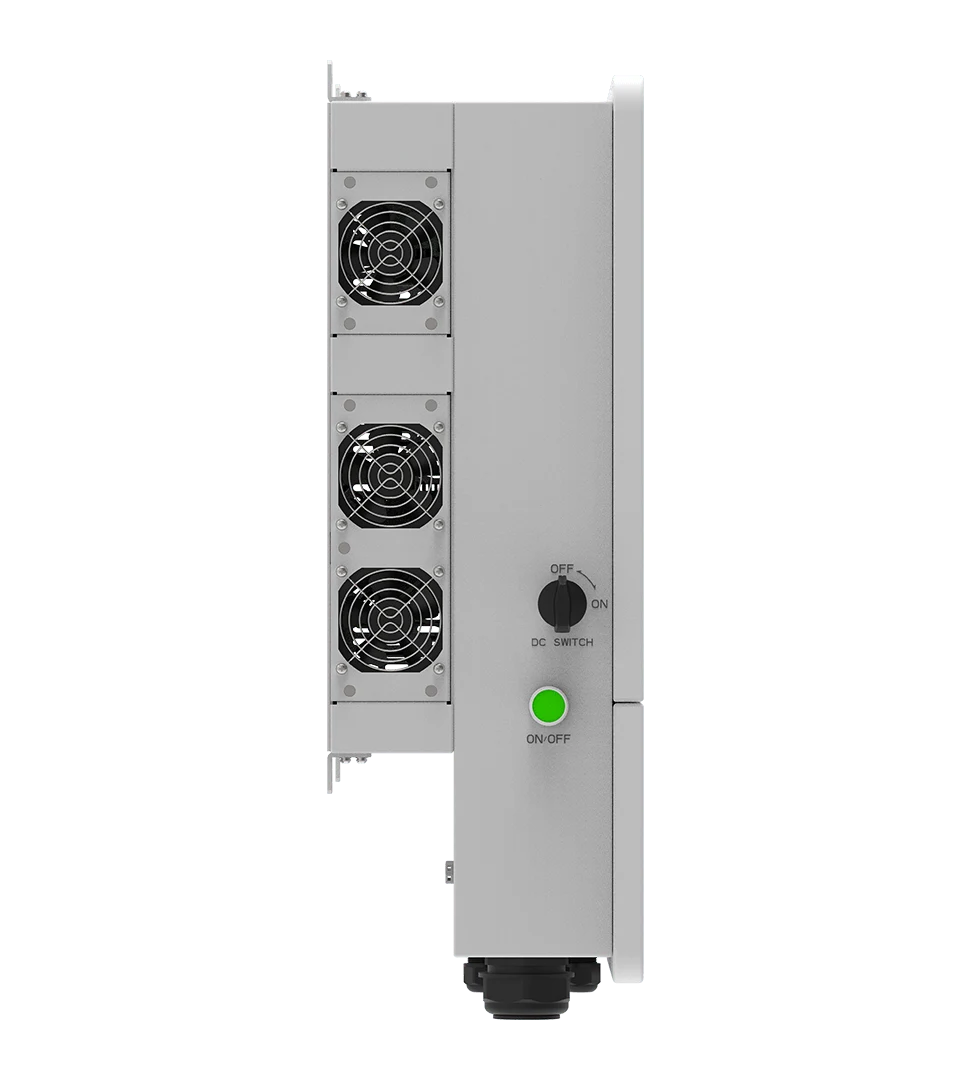

| Type Of Cooling | Intelligent Air Cooling | |||
| Warranty | 5 Years / Up to 10 Years* *Warranty period varies by installation country. Refer to the Warranty Policy for details. | |||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | |||
| Safety/EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||
