Deye · 混合逆变器

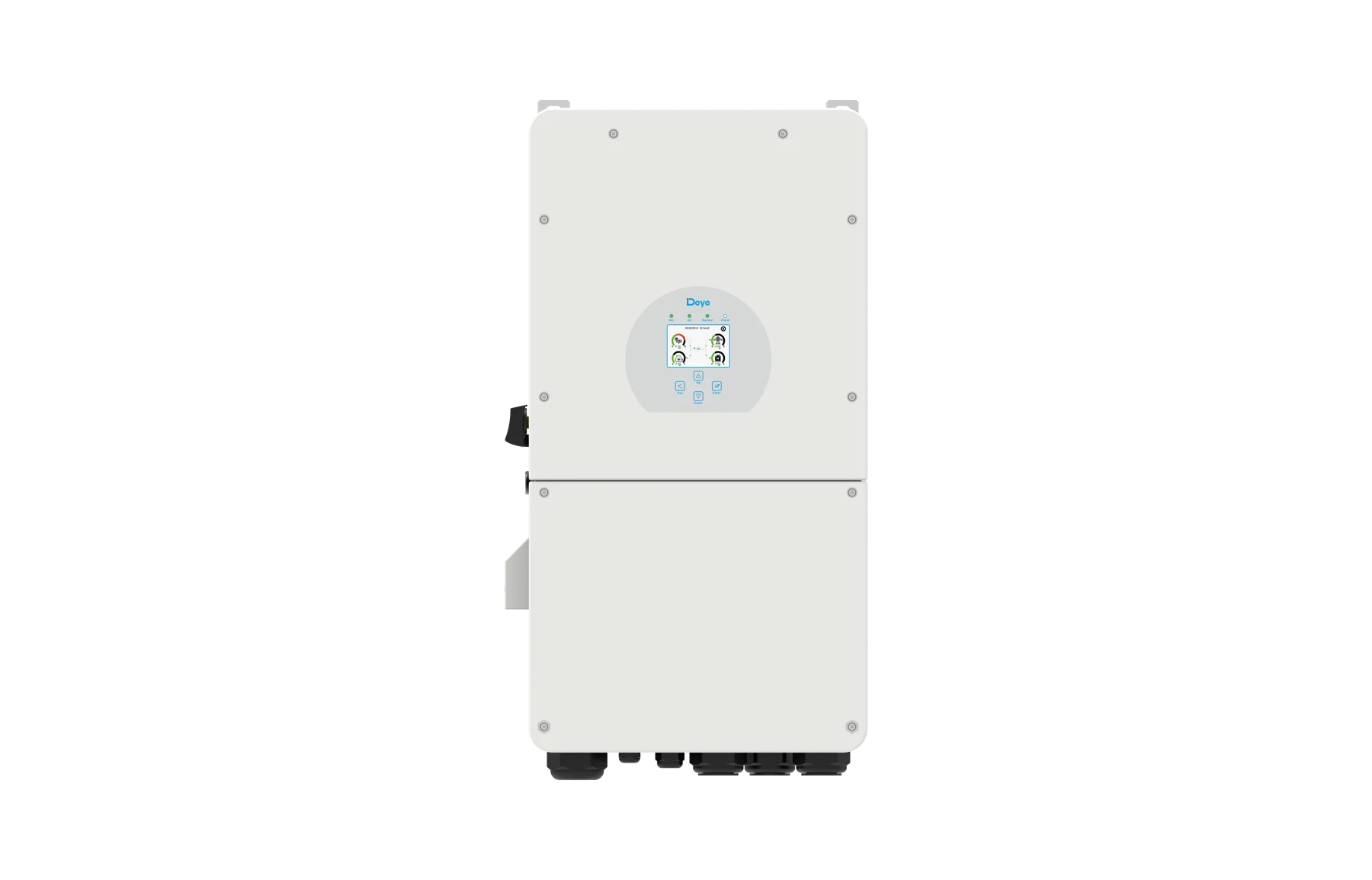

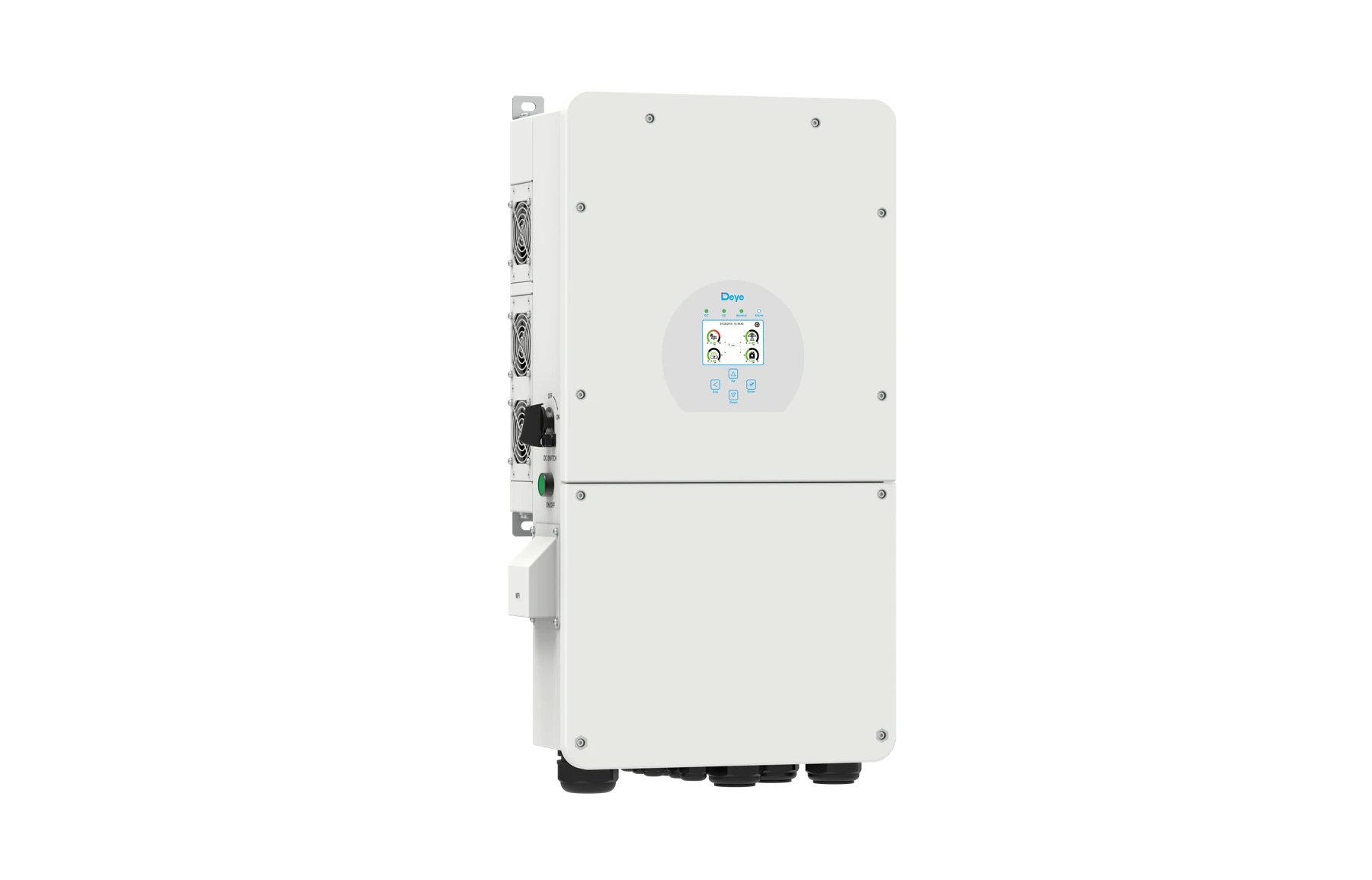

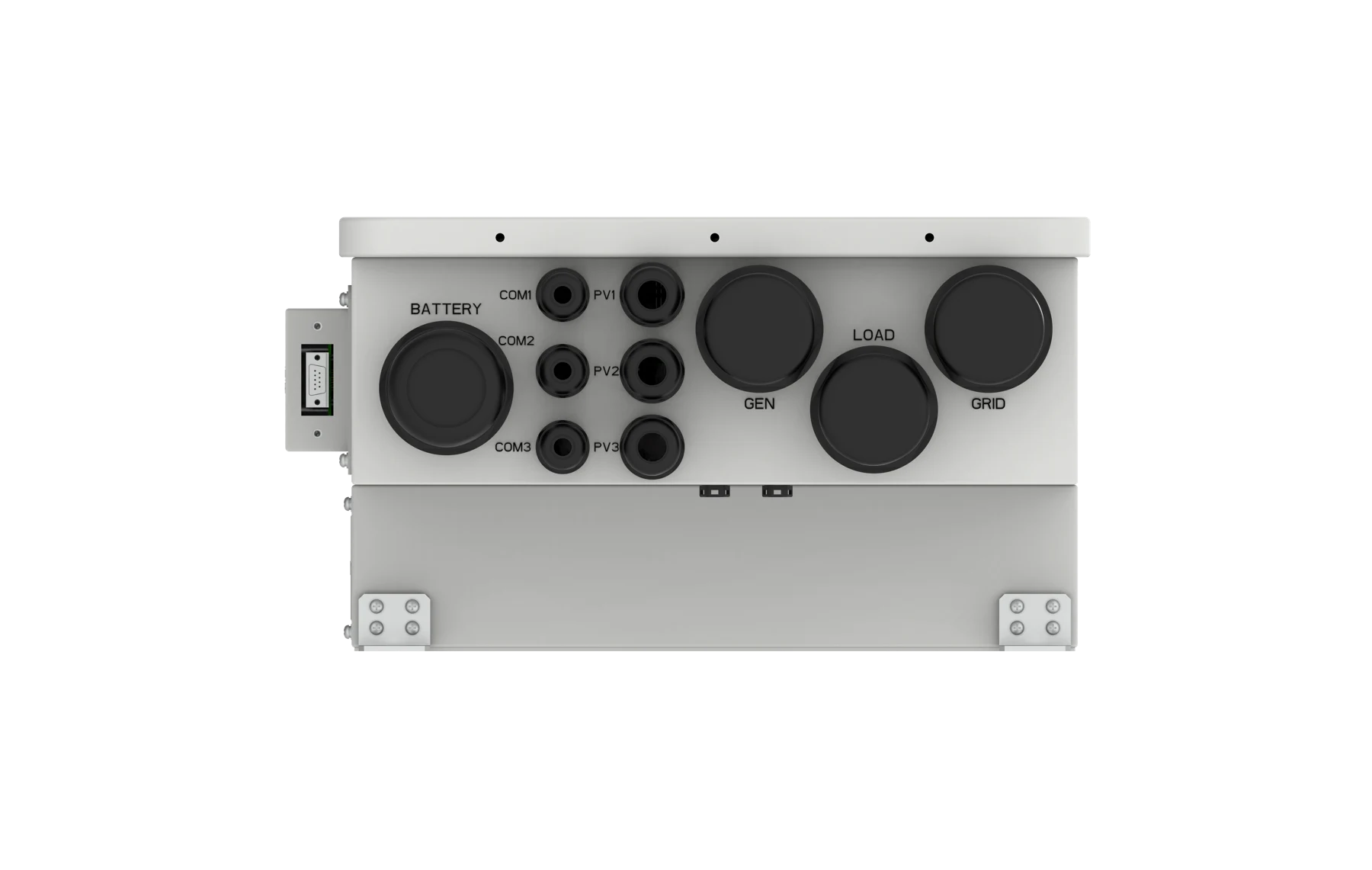

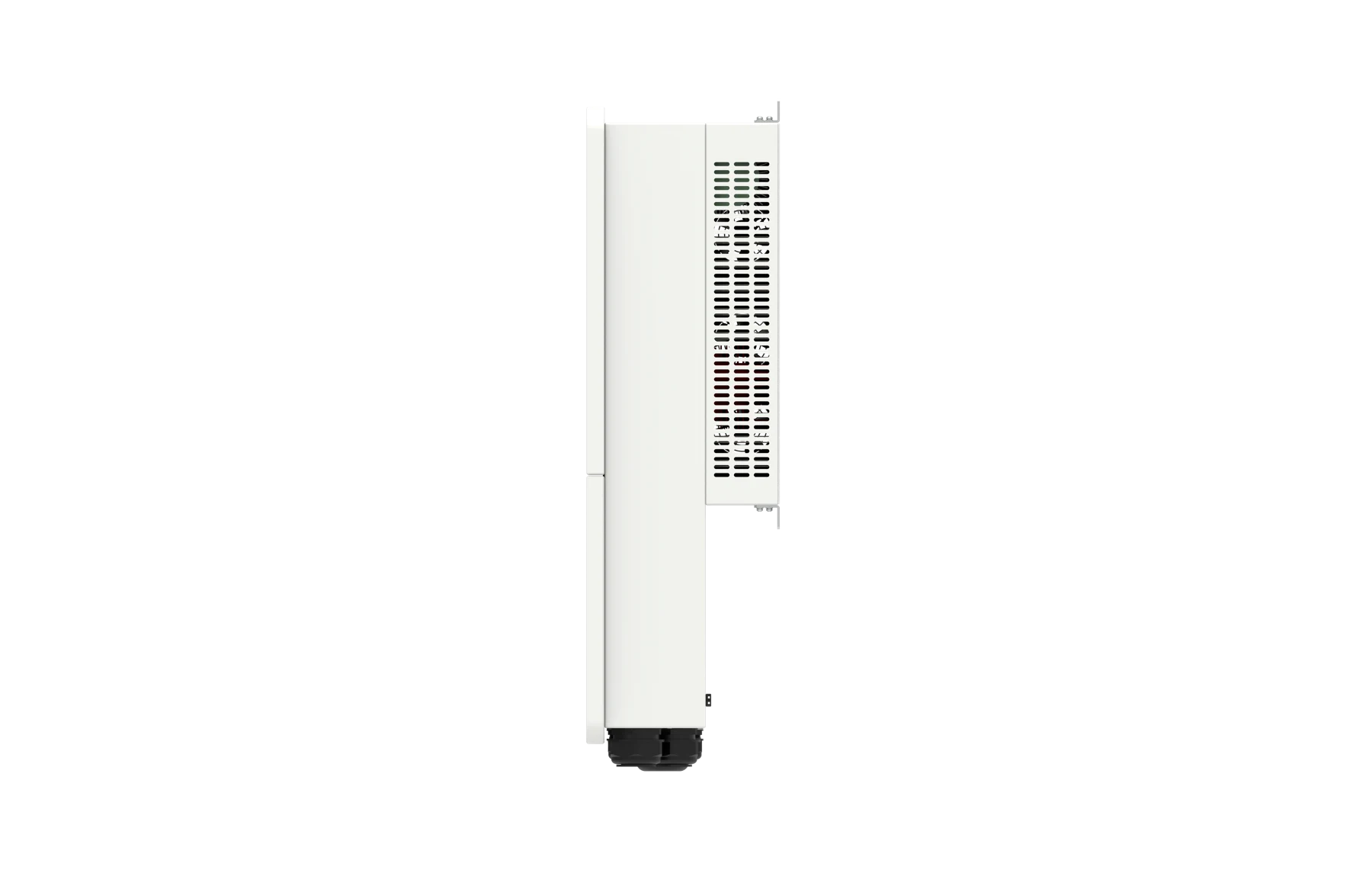

Deye SUN-8/10/12/15K-SG01HP3-US-AM2
Three Phase Hybrid Inverter | 8-15kW | 2 MPPT | HV Battery Supported
按官网系列页面整理；同一系列不同功率、区域和接口版本不能互换参数。官方英文原表保留型号列与合并单元格，采购前请确认具体型号、认证、供货、运费和交期。未标价产品请询价。
Deye · 2026-10-20
官方产品特点
- High voltage battery, higher efficiency
- AC couple to retrofit existing solar system
- Max. 10 pcs parallel for on-grid and off-grid operation; support multiple batteries parallel
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 50A
- Support storing energy from diesel generator
- 100% unbalanced output
官方技术参数对照
按官网系列页面整理；同一系列不同功率、区域和接口版本不能互换参数。官方英文原表保留型号列与合并单元格，采购前请确认具体型号、认证、供货、运费和交期。未标价产品请询价。
| Model | SUN-8K-SG01HP3 -US-AM2 | SUN-10K-SG01HP3 -US-AM2 | SUN-12K-SG01HP3 -US-AM2 | SUN-15K-SG01HP3 -US-AM2 |
|---|---|---|---|---|
| Battery Input Data | ||||
| Battery Type | Lithium-ion | |||
| Battery Voltage Range (V) | 160-500 | |||
| Max. Charging/ Discharging Current (A) | 50 | |||
| Charging Strategy forLi-ion Battery | Self-adaption to BMS | |||
| Number of Battery Input | 1 | |||
| PV String Input Data | ||||
| Max. PV Access Power (W) | 16000 | 20000 | 24000 | 30000 |
| Max. PV Input Power (W) | 12000 | 15000 | 18000 | 22500 |
| Max. PV Input Voltage (V) | 550 | |||
| Start-up Voltage (V) | 180 | |||
| MPPT Voltage Range (V) | 150-500 | |||
| Rated PV Input Voltage (V) | 380 | |||
| Max. Operating PV Input Current (A) | 26+26 | |||
| Max. Input Short-Circuit Current (A) | 39+39 | |||
| No. of MPP Trackers/No. of Strings MPP Tracker | 2/2+2 | |||
| AC Input/Output Data | ||||
| Rated AC Input/Output Active Power (W) | 8000 | 10000 | 12000 | 15000 |
| Max. AC Input/Output Apparent Power (VA) | 8000 | 10000 | 12000 | 15000 |
| Rated AC Input/Output Current (A) | 22.3 | 27.8 | 33.4 | 41.7 |
| Max. AC Input/Output Current (A) | 22.3 | 27.8 | 33.4 | 41.7 |
| Max. Continuous AC Passthrough (grid to load) (A) | 80 | |||
| Peak Power (off-grid) (W) | 1.5 times of rated power, 10s | |||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||
| Rated Input/Output Voltage | 120/208V 0.88Un-1.1Un 3L+N+PE | |||
| Rated Input/Output Grid Frequency/Range(Hz) | 60/55-65 | |||
| Total Current Harmonic Distortion THDi | <3% | |||
| DC Injection Current | <0.5% In | |||
| Efficiency | ||||
| Max. Efficiency | 97.6% | |||
| Euro Efficiency | 96.5% | |||
| MPPT Efficiency | >99% | |||
| Equipment Protection | ||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI) (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | |||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | |||
| Interface | ||||
| LCD/LED Display | LCD | |||
| Communication Interface | WIFI, RS485, CAN | |||
| General Data | ||||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | |||
| Permissible Ambient Humidity | 0-100% | |||
| Permissible Altitude | 2000m | |||
| Noise (dB) | ≤55 | |||
| Ingress Protection(IP) Rating | TYPE3R | |||
| Inverter Topology | Non-Isolated | |||
| Over Voltage Category | OVC II(DC),OVC IV(AC) | |||
| Cabinet Size (WxHxD mm) | 408×678×247 (Excluding Connectors and Brackets) | |||
| Weight (kg) | 30 | |||
| Type of Cooling | Intelligent Air Cooling | |||
| Warranty | 5 Years / Up to 10 Years* *Warranty period varies by installation country. Refer to the Warranty Policy for details. | |||
| Grid Regulation | IEEE 1547.1,SRD V2.0 | |||
| Safety EMC/Standard | FCC, UL 1741 | |||
